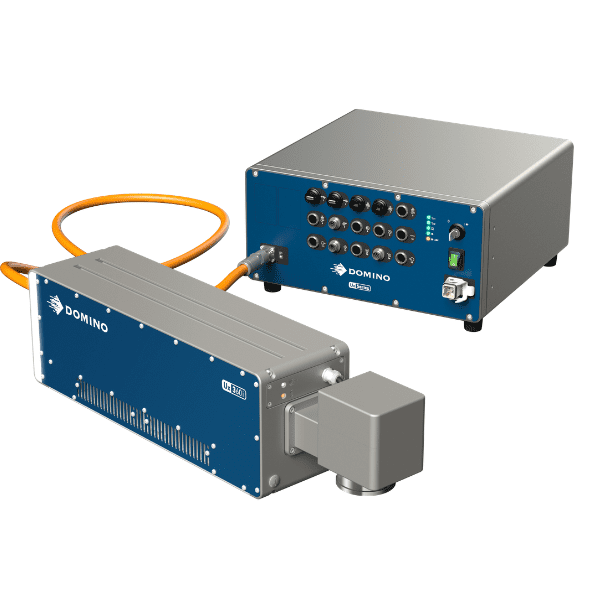

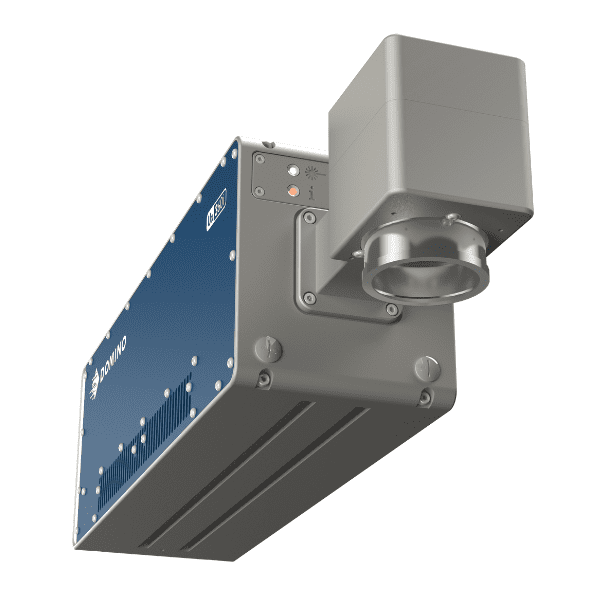

Domino Ux360i UV Laser Marker
Reliable UV laser marking for innovative packaging production

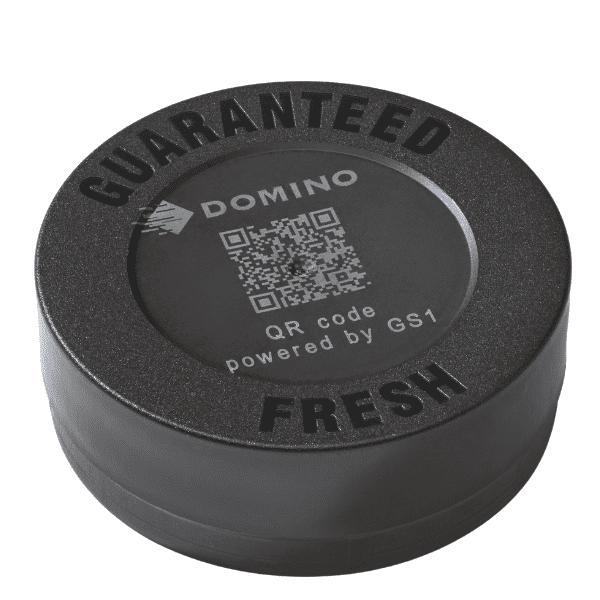

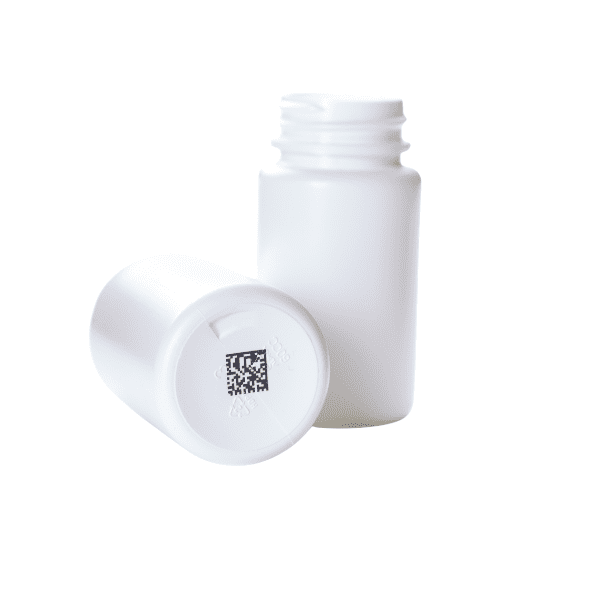

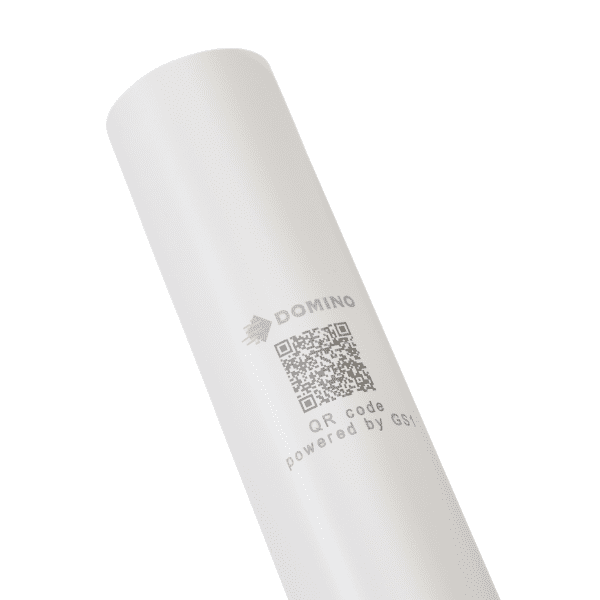

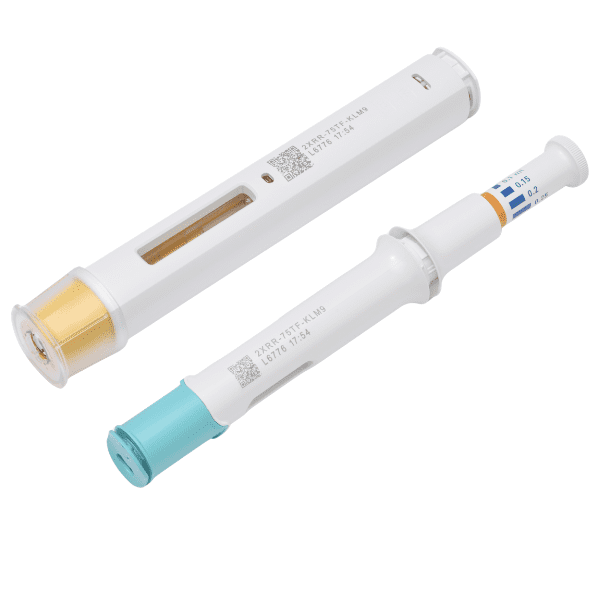

The Domino Ux360i UV laser marker is built to apply highly resistant identification codes with clear visibility and extreme marking accuracy on advanced packaging surfaces, including lightweight flexible films and recyclable mono-material substrates.
Through UV laser technology, the system performs surface marking using a controlled photochemical interaction, eliminating the risk of mechanical stress or substrate distortion. This process helps maintain the original quality and appearance of the packaging material, even on sensitive applications.
Domino Ux360i is perfectly suited for dynamic manufacturing environments and complex production setups, providing exceptional adaptability across different installation requirements. The equipment includes more than 50 standard beam orientation solutions, together with multiple custom-engineered configurations for specialised production needs.
System integration is efficient and flexible: Ux360i communicates easily with ERP, MES and WMS software environments, while its browser-access interface supports simple, responsive and efficient production management.
Why Businesses Choose Domino Ux360i

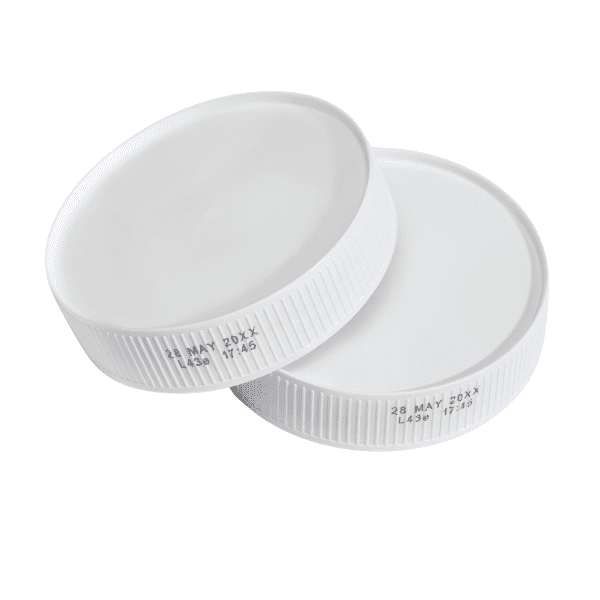

The Domino Ux360i UV laser marker is developed for permanent industrial coding, delivering strong code visibility and dependable precision across modern packaging materials, including flexible thin films and recyclable mono-plastic packaging.
Ux360i performs efficiently on high-output manufacturing lines, combining installation flexibility with over 50 beam delivery layouts for simplified integration into industrial production systems.
Created for challenging industrial production conditions, the solution supports FDA and GMP requirements while enabling GS1 and 2D coding standards for improved traceability management.

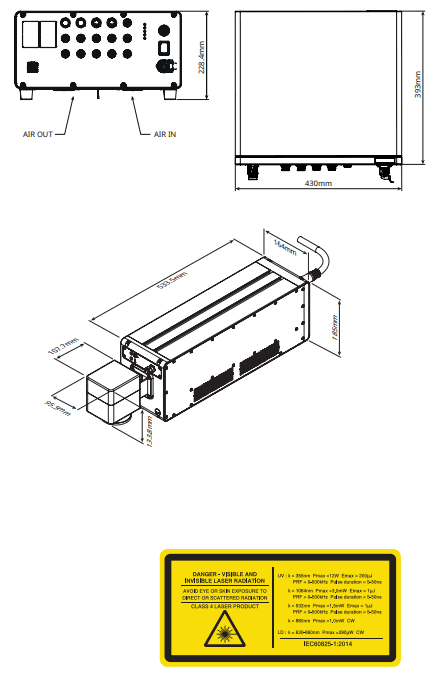

Technical Details
| Laser type | |
|---|---|
| Laser technology | UV |
| Laser source | 5 W |
| Coding format | |
| Marking content | Laser-optimised characters for high-speed marking and standard industrial characters. Graphics, logos, standard machine-readable industrial code formats (1D, 2D) (DataMatrix, GS1, QR). Intuitive support for GS1 Digital Link. Traceability support with serialisation, sequential and batch numbering data. Synchronised clock / Network Time Protocol (NTP) support |
| Focal length of high-speed scan head | from 80 mm to 480 mm |
| Marking field of high-speed scan head | from min. 55×55 mm² to max. 330×330 mm² |
| Advanced functions | Pilot laser, Aim & Code |
| User interface | |
| User interface | Web user interface, multiple access points in parallel, optional 10.1″ TouchPanel |
| Interface options | Domino Cloud Interface (DCI), Domino Coding Automation |
| System specifications | |
| Scan head orientations | Wide range of scan head orientations, including a 360° rotatable variant. Over 50 beam orientation variants. Additional support for customised solutions and integration. |
| Protection rating | Laser head: IP65** Controller: IP55 |
| Operating temperature | 5 °C – 40 °C |
| Ambient humidity | 20–80% non-condensing |
| Electrical supply | multi-voltage 90-264 V, 50/60 Hz |
| Inputs and outputs, interfaces | |
| Inputs/outputs | Multiple inputs and outputs are available, e.g. extractor, encoder, product detection (NPN, PNP), beacon and interlocks, standard GPIO, additional optional GPIO available. |
| Interfaces | Ethernet, USB, Dynamark protocol, EtherNet/IP™ |
| Options | |
| Accessories | Extraction, air knife for lens cleaning, multiple brackets, cables and supports for integration |
| Application certifications | CE***, UKCA, CB / Complies with requirements: NRTL, RoHS, FDA, EMC, FCC |
* Subject to regional availability
** Excluding the cooling section where the fan and heat sink are located
*** Partly completed machinery pursuant to the Machinery Directive (2006/42/EC), CE marking according to RoHS (2011/65/EU) and EMC (2014/30/EU)
