Lumina Checkweigher


An advanced checkweighing solution designed to ensure accuracy, efficiency and seamless integration into modern production lines

Why Choose the Lumina Checkweigher

precision performance iconThe dynamic weighing system removes the need for complex auto-calibration or product learning steps. Lumina detects the true product weight instantly and consistently, regardless of product shape, size or position on the conveyor.

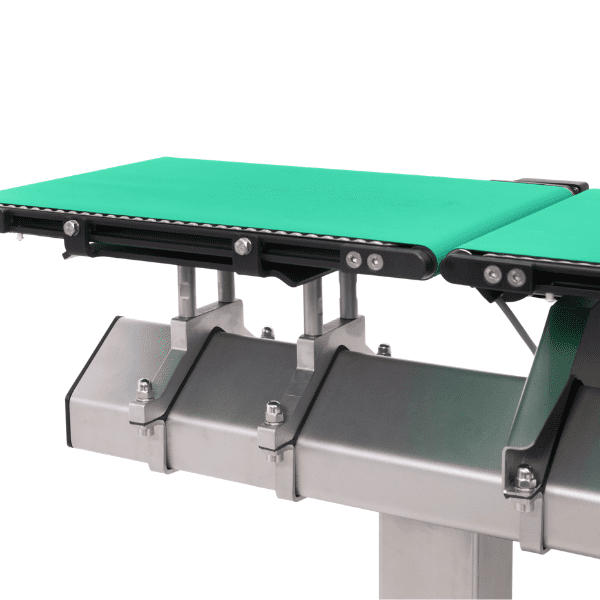

flexible configuration iconWith various conveyor configurations and accessory options, Lumina adapts easily to different product types and production layouts. Its modular structure allows full customisation according to specific operational requirements, optimising space and performance.

regulatory compliance iconEntirely manufactured in stainless steel and designed for fast and effective sanitisation, Lumina supports compliance with strict industrial standards and meets the safety requirements of modern production environments.

Technical Information

Capacity From 5 g to 8 kg
Verification Division ≥ 0.1 g
Display Resolution “d” ≥ 0.01 g
Accuracy (3σ) ≥ ± 0.005 g
Throughput ≤ 600 ppm
Conveyor Speed ≤ 120 m/min
Power Consumption ≤ 0.3 kW
Configuration From 1 to 6 conveyors
IP Protection IP65 (IP69K optional)

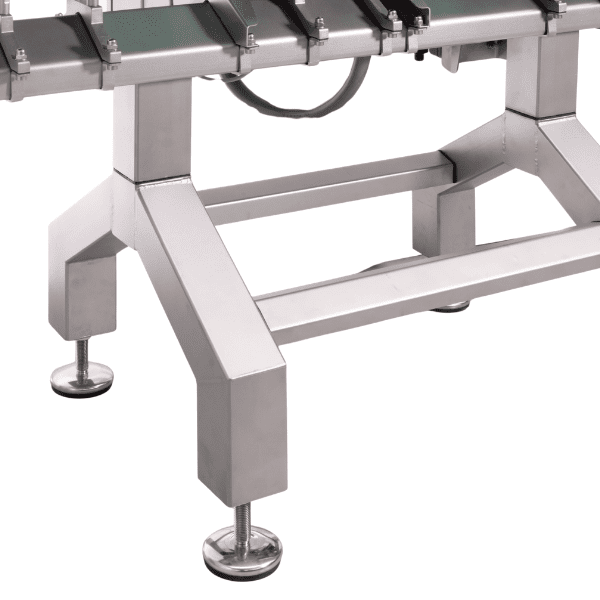

Height From 700 mm to 1100 mm
Conveyor Width From 110 mm to 400 mm
Conveyor Length From 150 mm to 550 mm

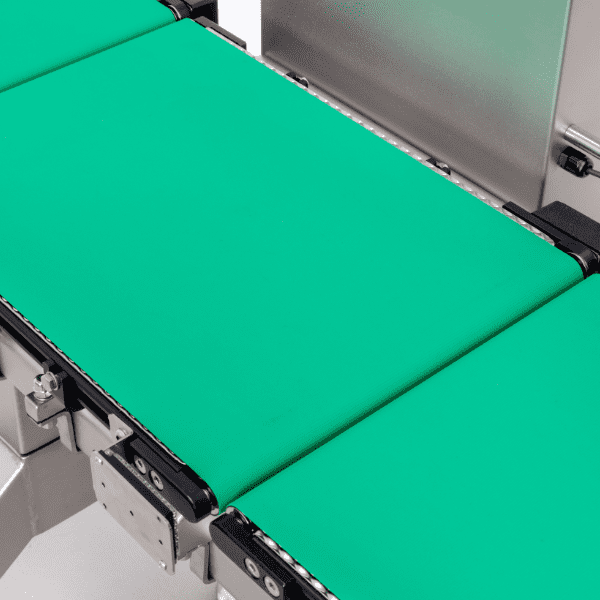

Conveyor Type Polyurethane belt – Modular plastic – V-shape
