Domino Gx150i Thermal Inkjet Printer

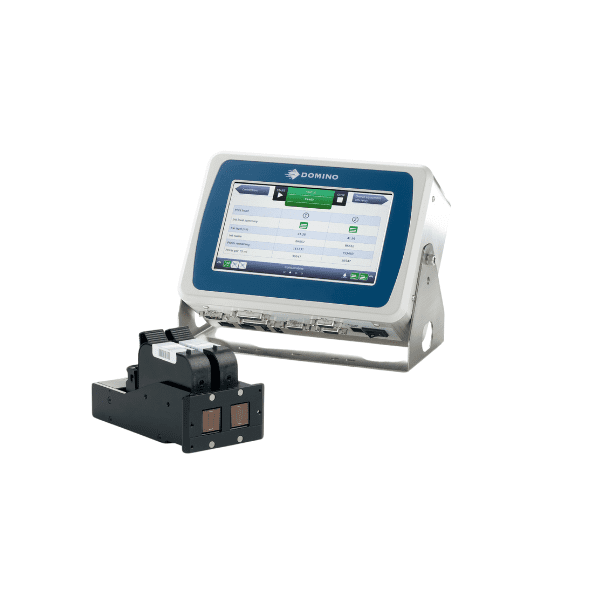

Domino Gx150i: High-Precision Thermal Inkjet Coding System

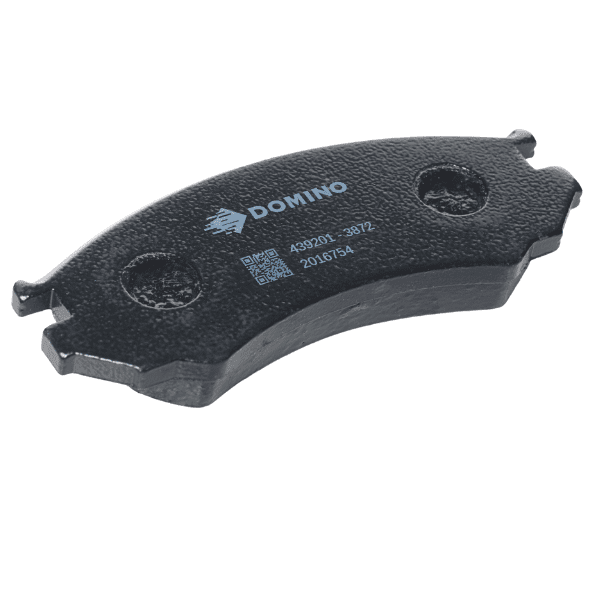

The Domino Gx150i is a thermal inkjet coding solution created to deliver sharp, durable, smudge-free prints on many materials such as electronic parts, metals, aluminium, and PCBs.
With its advanced connectivity and excellent print quality, the Gx150i is the perfect choice for batch numbers, expiry dates, complex coding layouts, weight control, and traceability in sectors like FMCG production.
If you need a high-speed, robust coding printer, the Domino Gx150i is designed to integrate flawlessly into manufacturing lines, guaranteeing maximum uptime and full traceability.

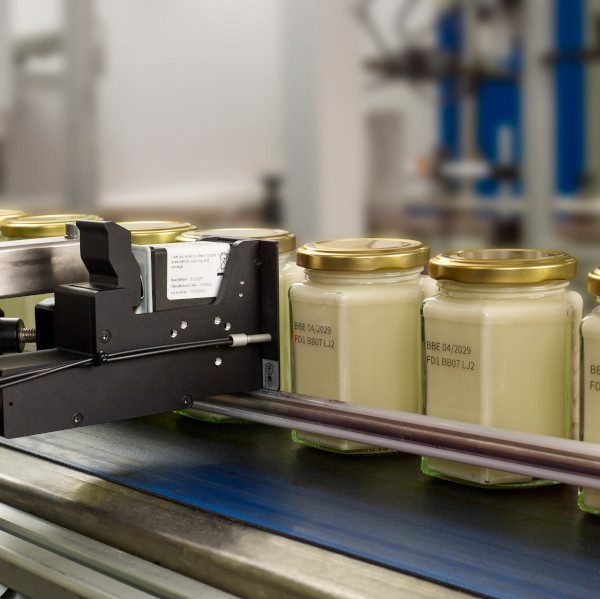

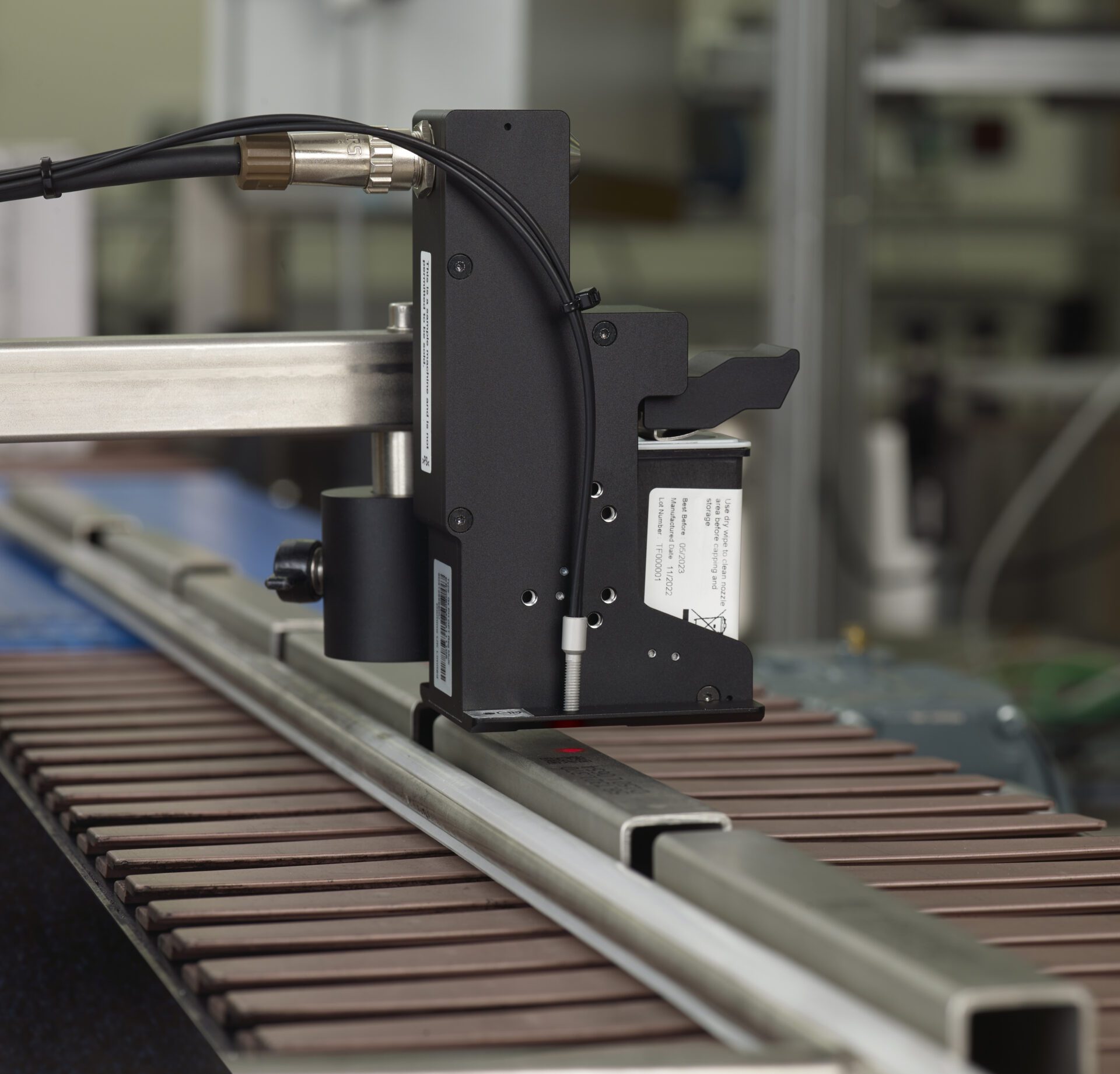

The compact printheads of the Gx150i install easily in existing lines and can be placed up to 25 metres away from the controller, making it highly adaptable.

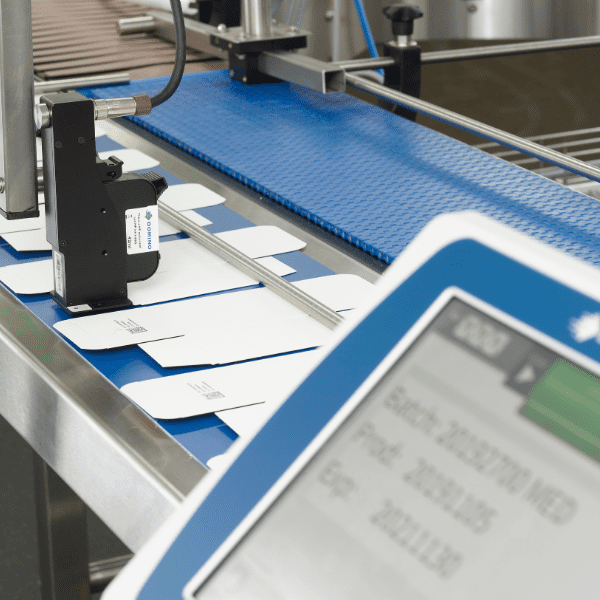

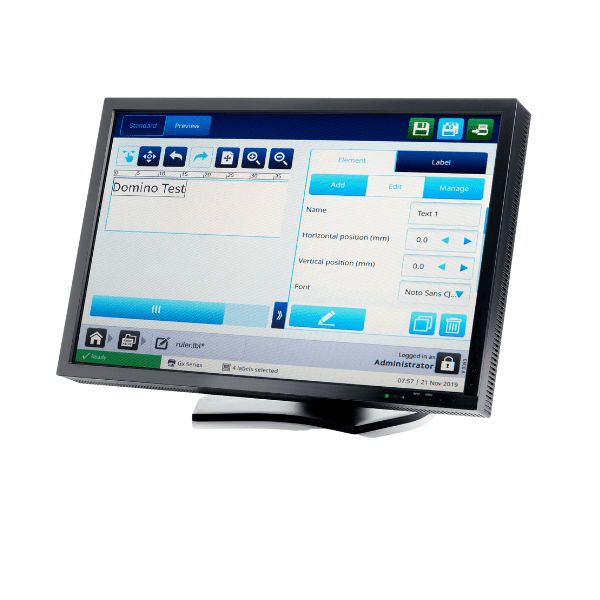

Its 7-inch touchscreen interface is intuitive, ensuring error-free use, straightforward data input, and continuous workflow.
Why Choose the Domino Gx150i Thermal Inkjet Printer?

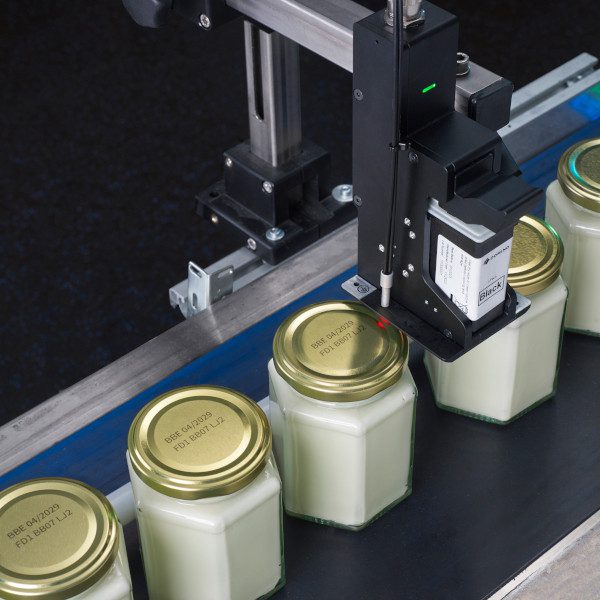

The Domino Gx150i thermal inkjet printer delivers ISO 15415 grade A readability with Domino inks on high-density data matrix codes*. It also prints batch details, dates, barcodes accurately using 1 or 2 heads, with serialization available.
* Depends on material

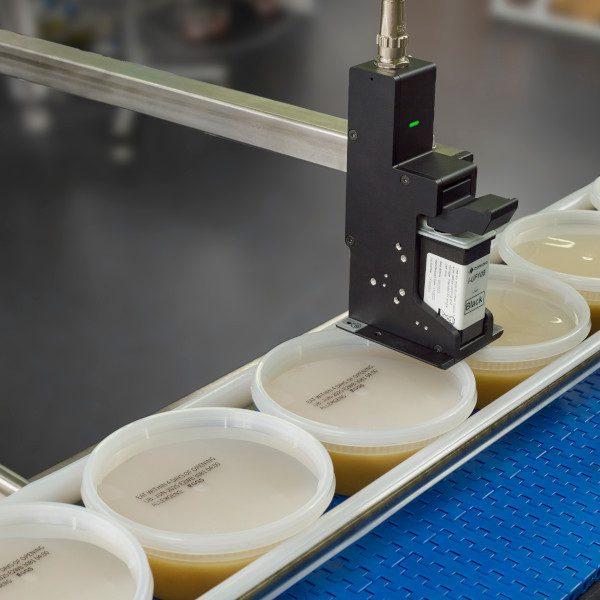

For continuous operation, the AutoSwap system lets you replace cartridges while printing. Its dual printhead setup supports coding two lines, dual applications, or taller messages.
No routine servicing needed: changing cartridges renews all wear parts. LED indicators show print status and alert when cartridges require changing.
Variants

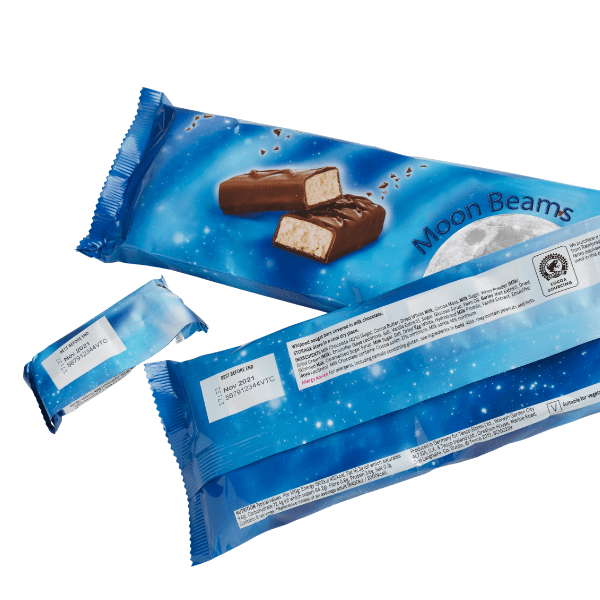

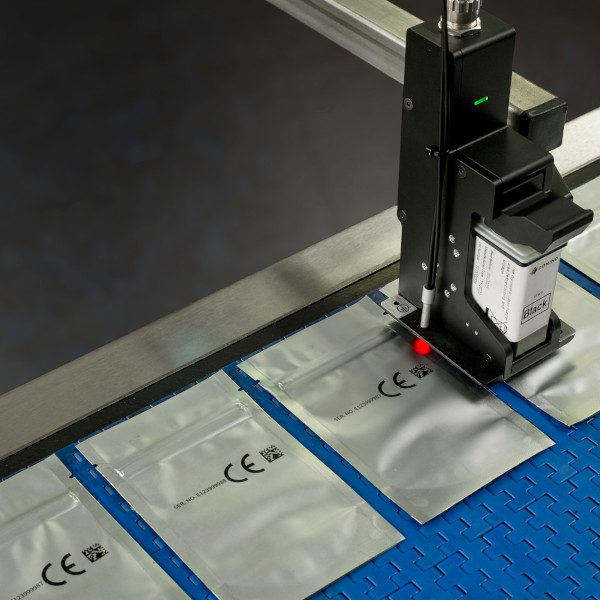

The Domino Gx thermal inkjet series also comes in EXT and OPT versions. These options improve sealing on diverse materials, especially thin recyclable PP/PE films, ensuring smooth printing on uneven surfaces.
EXT and OPT heads are ideal for businesses printing codes above 12.7 mm without stitching issues from multiple heads.
Technical Information
Domino printers comply with global standards and are available in over 100 countries. Certified CE, NRTL, CB, and FCC 47CFR Part. 15B.

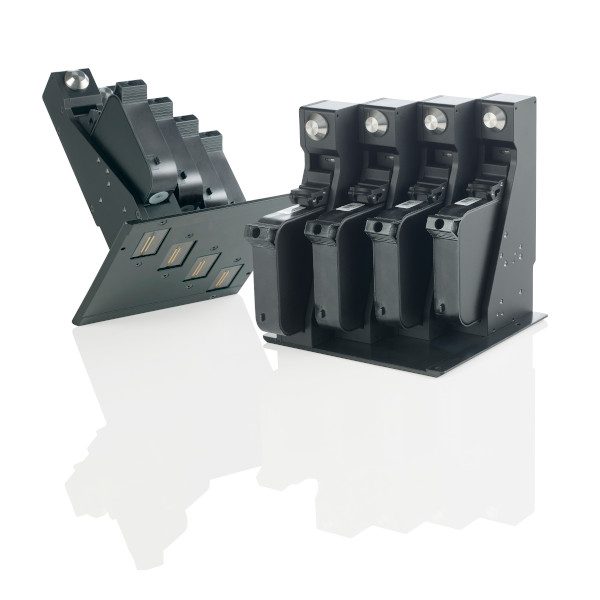

Gx PRO: Ready for the New Era of 2D Codes
The new Domino Gx PRO printheads have been developed to support the transition to GS1 Digital Link and information-rich 2D codes. With a print height of up to 23 mm, high resolution, and strong contrast, they enable the production of reliable, easy-to-read codes even on high-speed production lines.
Designed to deliver speed, compliance, and reduced waste, Gx PRO printheads make it possible to incorporate variable data such as batch numbers, expiry dates, and traceability information into 2D codes, supporting more effective controls throughout the supply chain. Seamless integration with Domino R-Series vision systems also enables automatic verification of every code directly on the production line.
Ideal for the food, pharmaceutical, and direct packaging printing sectors, Gx PRO printheads provide a future-ready solution for evolving traceability requirements and regulatory compliance.
| Controller Dimensions | H: 75 mm / D: 224 mm / W: 156.5 mm / 1.55 kg |
| Printhead Dimensions | H: 152 mm / D: 50.9 mm / W: 28.5 mm / 0.22 kg |
| Printhead Cable Length | 1.5, 3, 6, 12, or 25 m |
| Printheads per Controller | Up to 2 heads for taller prints or dual line marking |
| Print Height | 1 head: up to 26.1 mm / 2 heads: up to 52.2 mm |
| Print Speed & Resolution | 300 m/min at 60 dpi / 30 m/min at 600 dpi |
| Connection Options | 1 encoder, I/O for alarms/sensors, 2 USB-A, RS232C, 2 LAN ports |
| Electrical Connector | 6 mm DC jack |
| Power Connector | Input: 100-240 V AC, 50-60 Hz, 2 A / Output: 24 V DC, 5 A |
| Operating Temperature | 0° to 40°C |
| Relative Humidity | 20-80% RH (non-condensing, max +10°C/hr) |
| Controller Casing | Stainless steel |
| Inks | Fast-drying water and solvent inks for porous/non-porous; black, colours, specials |
| i-Tech Features | Auto cartridge detection, parameter setting, ink level logging |
| Communication Protocols | Ethernet / Dynamark, EDC (serial, TCP, USB) |
| User Interfaces | QuickStep via 7” touchscreen or control panel |
