MC Series Combined System

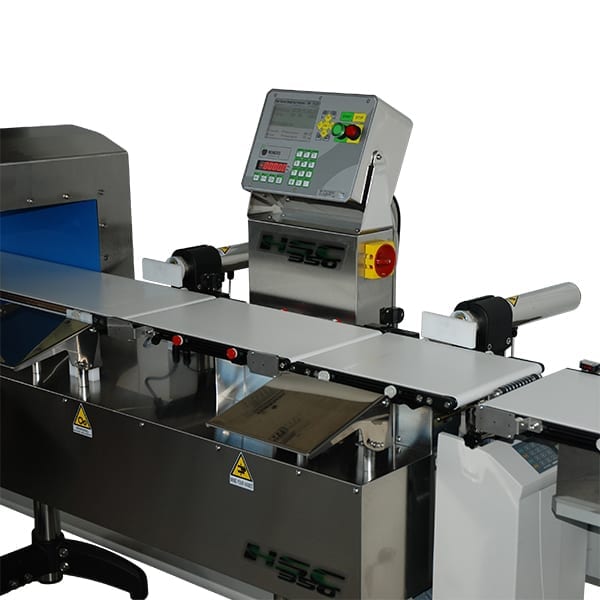

When a metal detector merges with a checkweigher, the MC Series Combined System becomes a cutting-edge final inspection solution

The HSC350 statistical data collection system and the local printer log any metal detector irregularities.

Furthermore, the metal detector is seamlessly built into the control and command architecture.

Advantages of the MC Series Combined System

goal achievement icon

True Dynamic Weight Measurement: The HSC350 system functions without calibration or prior product profiling, ensuring rapid setup and precision.

regulatory compliance icon

Guaranteed Regulatory Compliance: Conforms to the MID directive (2004/22/EC of 31/03/2004) and holds a CE Type Certificate.

product types icon

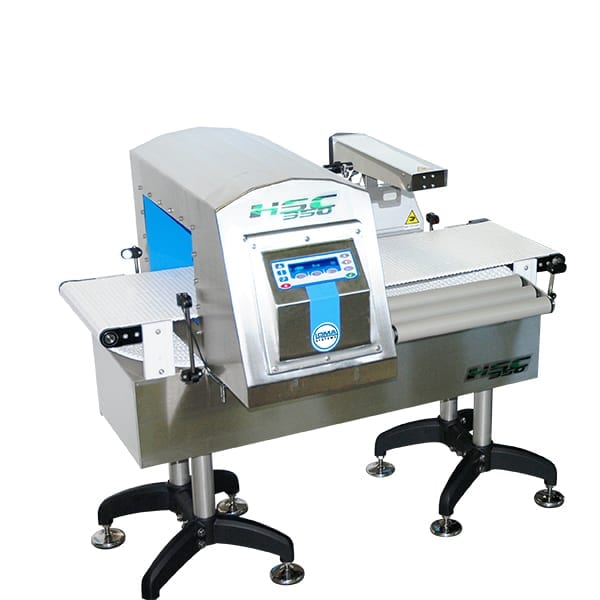

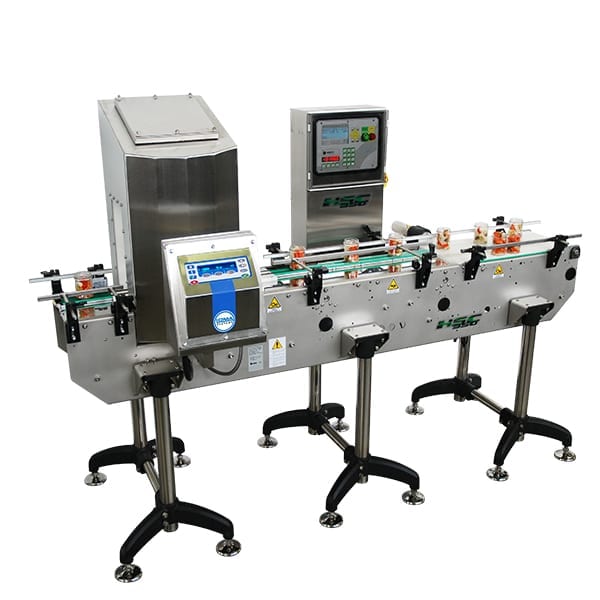

Versatile Product Handling: Configure the metal detector with one to four conveyors in traditional or modular formats, as a standalone unit or integrated with the HSC350 checkweigher.

Technical Info

Maximum Capacity

1.500 g (HSC350/01)
3.000 g (HSC350/03)
6.000 g (HSC350/06)
15.000 g (HSC350/15)
30.000 g (HSC350/30)

Minimum Capacity

15 g (HSC350/01)
30 g (HSC350/03)
60 g (HSC350/06)
150 g (HSC350/15)
300 g (HSC350/30)

Resolution (d)

≥ 50 mg (HSC350/01)
≥ 0.1 g (HSC350/03)
≥ 0.2 g (HSC350/06)
≥ 0.5 g (HSC350/15)
≥ 1 g (HSC350/30)

Division (e)

≥ 0.5 g (HSC350/01)
≥ 1 g (HSC350/03)
≥ 2 g (HSC350/06)
≥ 5 g (HSC350/15)
≥ 10 g (HSC350/30)•

Number of Divisions

fino a 4.000 (HSC350/01)
fino a 4.000 (HSC350/03)
fino a 4.000 (HSC350/06)
fino a 4.000 (HSC350/15)
fino a 4.000 (HSC350/30)

Configuration Options
