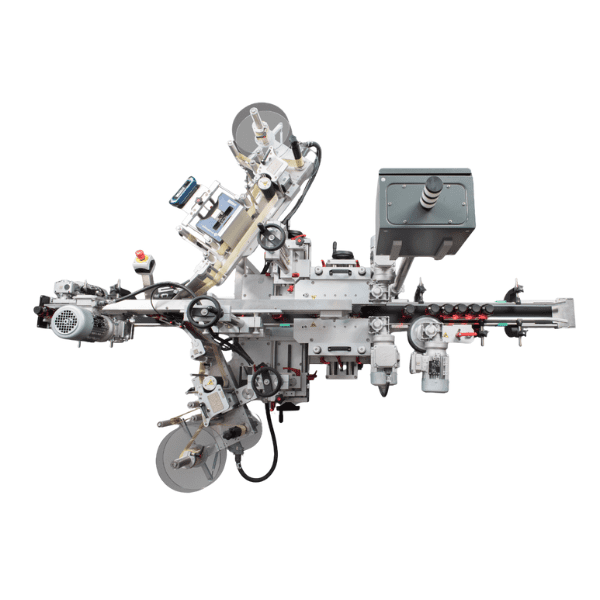

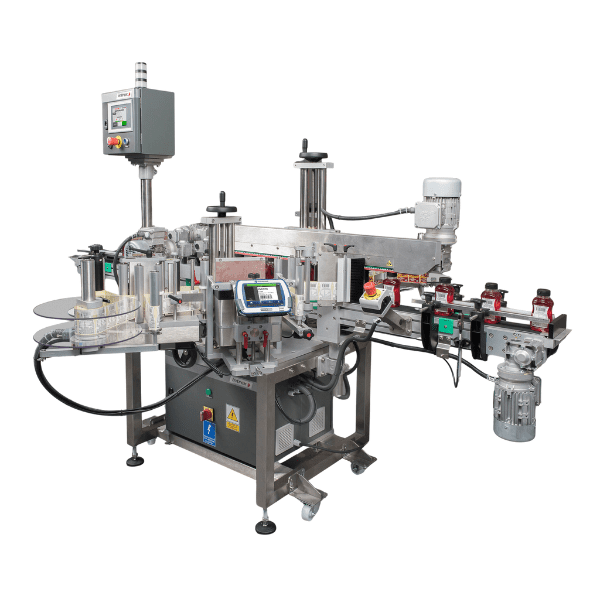

Intrex Set 2202 PLUS – Double-Sided Labelling


Flexible front and back labelling for bottles and containers

Intrex Set 2202 PLUS provides a practical and operator-friendly solution for applying labels on both sides of products – ideal for bottles, cans, and a wide variety of packaging.

The system features an intuitive 5” colour touchscreen, giving operators direct control over head adjustments, line speed, and other essential functions. Its compact and mobile design ensures seamless integration into existing layouts.

Additionally, a thermal transfer printer can be integrated to print QR codes or production data directly onto labels.

Why choose Intrex Set 2202 PLUS?

Integration easy icon
Simple integration
Compact mobile design for quick installation into existing lines.

Print quality feature icon
Additional features
Thermal transfer printer option allows QR codes and variable data printing on labels.

Touchscreen user interface icon
User-friendly operation
5” touchscreen provides fast, easy access to dispenser and speed settings.

Technical Info

Label placement Front and back sides
Capacity Up to 60 products/min
Touchscreen 5” colour display, intuitive control
Label width Max. 220 mm
Label roll diameter Max. 300 mm (optional 350 mm)
Core size 400 mm or 76 mm
Power supply 230 VAC, 50 Hz
Compressed air 0.6 MPa
