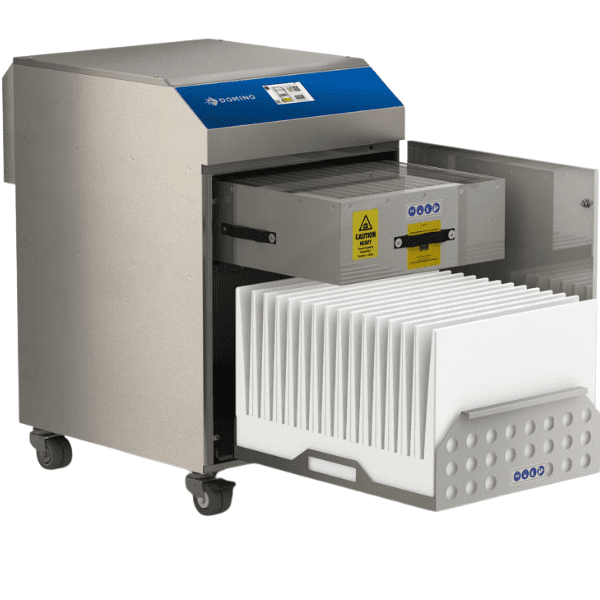

DPX3500 Laser Extraction System


Reliable fume extraction for CO2, fiber, and UV lasers – guaranteeing stable performance and code consistency

The DPX3500 is engineered to keep production areas clean and safe when working with industrial laser printers. Whether using CO2, fiber, or UV laser systems, efficient extraction is vital to equipment longevity and operational stability. The unit effectively removes fumes and particulates produced during laser coding, safeguarding both machinery and operators.

With DPX3500, you benefit from maximum availability, enhanced OEE, and consistent high-quality coding output.

Why Choose DPX3500

smart monitoring iconSmart Monitoring
DPX3500 continuously tracks pressure, temperature, and installation status. Early warnings help resolve small issues before they escalate into unplanned downtime.

uptime improvement iconMaximum Uptime
The advanced filtration system shields laser components, prolongs lifespan, improves OEE, and reduces servicing demands.

user-friendly operation iconUser-Friendly Operation
The integrated control panel ensures intuitive navigation and provides real-time filter and system status information.

Technical Specifications

Power Supply 100–240 V AC ±10 %, single phase
Dimensions (HxWxD) 882 x 600 x 708 mm
Weight 72.6 kg without filters / 112 kg with filters
IP Rating IP56
Material Stainless steel
Airflow 450 m3/h
Operating Temperature 5 – 45°C
Filter Monitoring Yes, per individual filter unit
Control System Smart interface with status display
