Domino X630i – Digital Single-Pass Printer


High-speed single-pass digital printing for corrugated board

The Domino X630i is a state-of-the-art digital single-pass printer designed for corrugated board applications. It achieves print speeds up to 75 meters per minute with a resolution of 600 x 600 dpi, handling sheet formats as large as 1,600 x 3,000 mm—equivalent to 4,500 sheets per hour. The system includes a servo-driven feeder, vacuum sheet transport, and versatile delivery options for both stacks and bundles.

Powered by Domino’s Generation 6 inkjet technology, the printer incorporates over four decades of expertise. The built-in i-Tech CleanCap feature automatically cleans and seals the print heads, minimizing manual upkeep. With continuous ink circulation through i-Tech ActiFlow, print stability is enhanced, while i-Tech StitchLink ensures precise print head alignment for sharp and uniform results across the sheet.

Using Domino AQ95 inks with the proprietary i-Tech PolyM formulation, the printer delivers excellent quality on both coated and uncoated corrugated board—without primer or extra bonding agents. The X630i is the perfect choice for companies looking for a robust, future-ready solution in digital corrugated printing.

Why Choose Domino X630i?

icona settori industrialiAutomatic print head cleaning and capping station keeps nozzles performing reliably, shortens start-up time, and lowers operator involvement.

icona integrazione 2Precision micro motor control aligns print heads accurately, ensuring flawless printing across the entire sheet width.

icona qualità di stampaAQ95 CMYK inks are compliant with the EuPIA exclusion policy and suitable for a wide range of non-direct food packaging.

Technical Information

Press modules Feeder, Transfer In, Plate cleaning, Plate inspection, Print section, Transfer Out, Dryer, Overprint varnish section
Technology Piezo Drop on Demand inkjet, Infrared drying
Print speed 50 m/min – 75 m/min
Image resolution 600 dpi native plus 3 gray levels
Sheet size range 508 x 762 to 1,600 x 3,000 mm
Maximum image size 3000 mm x 1345 mm
Media types Coated, Uncoated & Kraft. Thickness: E to BC flute
Ink CMYK water-based inks. EU/FDA, Nestlé, Swiss compliant
Workflow Esko DFE, Colour Pilot, Domino ScreenPro HS – including step & repeat, colour management, cropping, edge-to-edge printing, saturation and hot folders
File formats PDF 1.3–2.0; PDF/X-1a, PDF/X-3, PDF/VT
Environment Fully enclosed system with dust and temperature control
Dimensions Length: 14,886 mm
Width: 4,928 mm
Height: 2,765 mm
Weight Feeder: 5000 kg
Transfer In: 5455 kg
Print section: 7275 kg
Transfer Out: 5000 kg
Dryer: 3653 kg
Overprint varnish: 1814 kg
Total: 28,178 kg
Services Power: 440-480 VAC / 60Hz / 3-phase
Air: 100 psi (8 Bar) minimum
No continuous water or air supply required
Drain: HVAC condensate

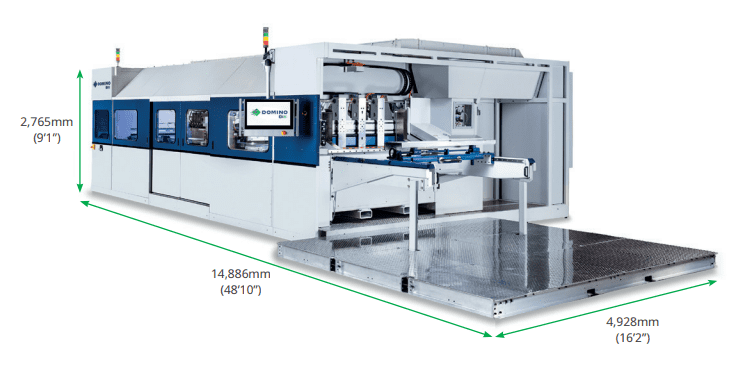

technical info domino x630i
