Domino V320i Thermal Transfer Printer
The Ideal Thermal Transfer Solution for Flexible Films and Labels
The Domino V320i thermal transfer system is the smartest and most economical choice for marking on flexible films and labels.
Simple to set up and integrate into any production setup, the V320i delivers both intermittent and continuous print functions in a single device. It operates at 300 dpi resolution, producing text, graphics, variable barcodes, and 2D codes with outstanding clarity.
Thanks to its innovative i-Tech design, it ensures high-speed marking, making the V320i an excellent fit for the fastest horizontal and vertical wrappers, labelling systems, and converting machines. Its advanced control system, coupled with the largest ribbon width available, makes the V320i the most cost-efficient thermal transfer unit.
Both intermittent and continuous printing modes are combined in a single machine and can be easily converted for right or left orientation. There is no need for a dedicated controller, as operation is possible directly through the production line PC interface.
Why Select the Domino V320i Thermal Transfer Printer?
Superior Print Quality Even at High Speed: The Domino V320i maintains optimal ribbon tension using its dancing arm technology, guaranteeing crisp, precise prints even during rapid speed changes and intense production rates.
User-Friendly Interface: No complicated settings or hard-to-navigate menus—just load your print file and begin. The built-in software enables operators to generate print jobs directly on the line.
Lowest Operating Cost in Its Segment: The Domino i-Tech ribbon system offers four configurations, including “Economy Mode”, cutting ribbon use by up to 60% while keeping print clarity high.
Technical Information
Domino printers are approved and distributed in over 100 nations worldwide. Certifications include CE, NRTL, CB, and FCC 47CFR Part. 15B.
Printer Specifications
| V320i (53 mm) | V320i (128 mm) | |
|---|---|---|
| Printing Mode | Intermittent (IM) and Continuous (CM) on the same printer | Intermittent (IM) and Continuous (CM) on the same printer |
| Left/Right Orientation | Convertible for both in 30 min. | Convertible for both in 30 min. |
| Print Resolution | 300 dpi | 300 dpi |
| Max. Print Area (IM) | 53×115 mm | 128×115 mm |
| Max. Print Area (CM) | 53×2700 mm | 128×1000 mm |
| Max. Printing Speed (IM) | 720 mm/sec | 720 mm/sec |
| Speed Range (CM) | 10-1400 mm/sec | 10-1400 mm/sec |
| Max. Print Repetition Speed | 6 prints/sec (10 mm print) | 6 prints/sec (10 mm print) |
| Ribbon Technology | i-Tech with dancing arms for tension control | i-Tech with dancing arms for tension control |
| Max. Ribbon Length | 1400 m (up to 3500 m in Economy mode) | 1400 m (up to 3500 m in Economy mode) |
| Standard Ribbon Width | 30 mm, 55 mm | 130 mm |
Ribbon Saving Modes
| Economy Mode | Variable at 1%, extends ribbon life by up to 60% | Variable at 1%, extends ribbon life by up to 60% |
| Retraction Mode | Less than 1 mm gap between prints | Less than 1 mm gap between prints |
| Column Mode | Available | Available |
| Stop Mid Print | Available | Available |
Printing Features
| Data Encoding Format | Available | Available |
| Offset | Available | Available |
| Shift Codes | Available | Available |
| Sequential Numbering | Available | Available |
| Fonts | Available | Available |
| Barcodes | Available | Available |
| Logos | Available | Available |
| Graphical Interface | QuickStep, colour interface with intuitive menus and large icons, WYSIWYG preview, multi-language | QuickStep, colour interface with intuitive menus and large icons, WYSIWYG preview, multi-language |
| Connectivity | Ethernet / USB x2 / Mini USB (service) | Ethernet / USB x2 / Mini USB (service) |
Operating Characteristics
| Temperature | Operating: 5°-40°C. Humidity: 20%-80%, non-condensing |
* Capacity varies based on application, substrate, and print length.
Maximum Performance in Thermal Transfer Printing
The Domino V320i thermal transfer system handles large print areas with high-definition text and images on films and labels. Its advanced i-Tech design enables rapid printing, making the V320i suitable for high-speed horizontal and vertical wrappers, labelling equipment, and converters. Its intelligent ribbon system, together with the widest ribbon on the market, makes the V320i the most affordable thermal printer. Both print modes come standard and are convertible for either installation side. No separate controller is needed: it runs through any PC interface.
Fastest Print Speeds on the Market
The unique i-Tech system with dancing arms maintains ribbon tension through sudden speed shifts, ensuring perfect print results at top production speeds. The V320i manages complex codes with consistency, printing at speeds from 10 to 1400 mm/sec with up to six prints per second.
Quick Setup and Integration
Adaptable: One model delivers both print modes, easily adjusted for left or right use to match production needs. Ribbons are available to meet strict regulatory and sustainability standards. The V320i also runs without a controller—simply link it to any PC or packaging interface.
Efficient: Produces sharp prints at 300 dpi, supporting text, logos, dynamic barcodes, and 2D codes. It can link to a database for variable data. Available in 53 mm and 128 mm printhead sizes for full adaptability.
Built to Last: The V320i performs reliably in dusty or cold areas thanks to its removable protective cover, guarding the printhead against particles and moisture. Its integrated heater maintains print quality and extends printhead life, even in low temperatures.
Lowest Operating Costs in Its Class
The Domino i-Tech ribbon system offers four modes, including “Economy Mode,” cutting ribbon usage by up to 60% with no compromise on quality.
Reliable and Productive: Uses up to 1400 m ribbons, increasing uptime and minimising downtime. In Economy Mode, ribbon life can double, halving changeovers. Ribbon recalibration is fast, keeping production moving. Downtime for breaks is eliminated as the dancing arms hold constant tension and require no maintenance, reducing operator involvement.
Easy to Operate
QuickStep is the user interface for quick and simple print control. Forget complicated menus—load your job and print. Design labels directly on line or create them on a PC with EasyDesign (or similar software) and transfer via USB or Ethernet.

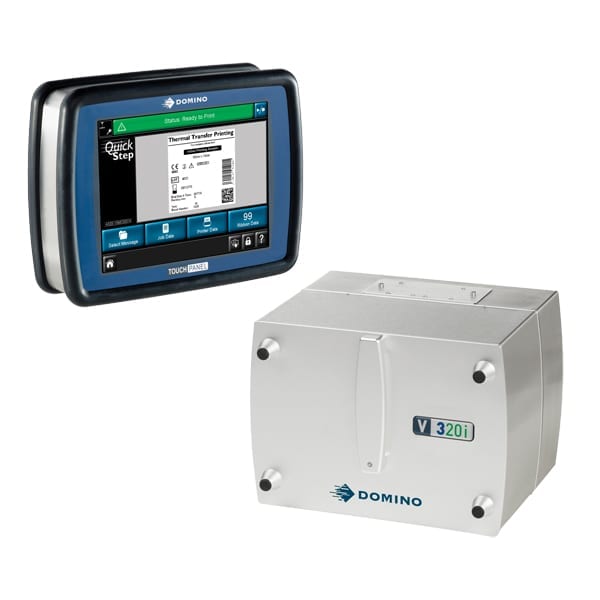

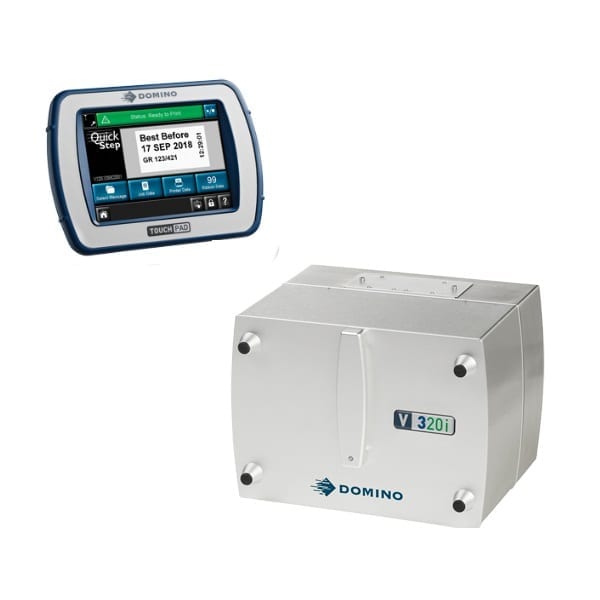

Variants

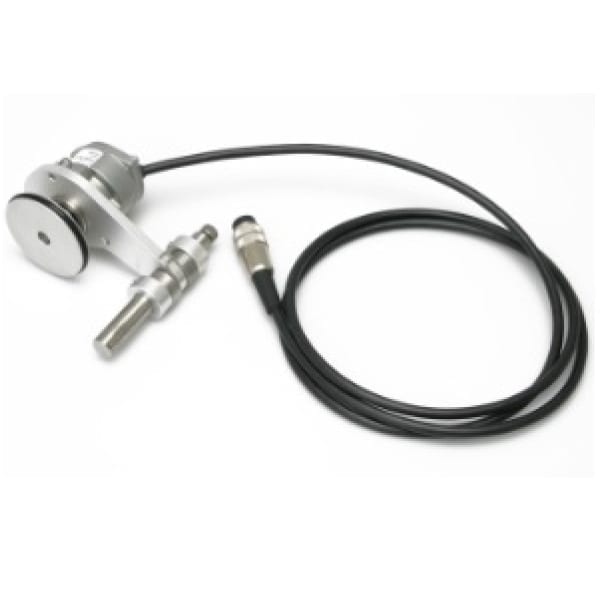

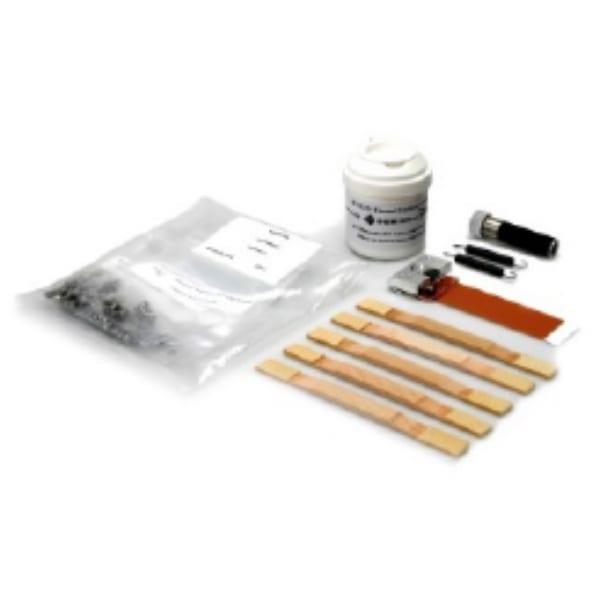

Accessories
Maximise productivity of Domino V-Series TTO printers with dedicated accessories suited to your production line.
