Domino U510 UV Laser Printer


The Perfect UV Laser for Durable Coding on Films and Plastics

The Domino U510 UV laser printer is created for permanent and ultra-sharp marking on modern plastic packaging materials.

This UV laser coder can apply codes directly onto coloured and white surfaces without the need for dedicated laser marking windows. Its super-compact, integrated build is Industry 4.0 enabled, making it simple to embed within today’s production environments.

The Domino U510 maintains barrier integrity by coding through a photochemical effect in the outer layer of packaging materials, avoiding damage. Its short-wavelength pulses and strong absorption reduce heat stress and soot deposits.

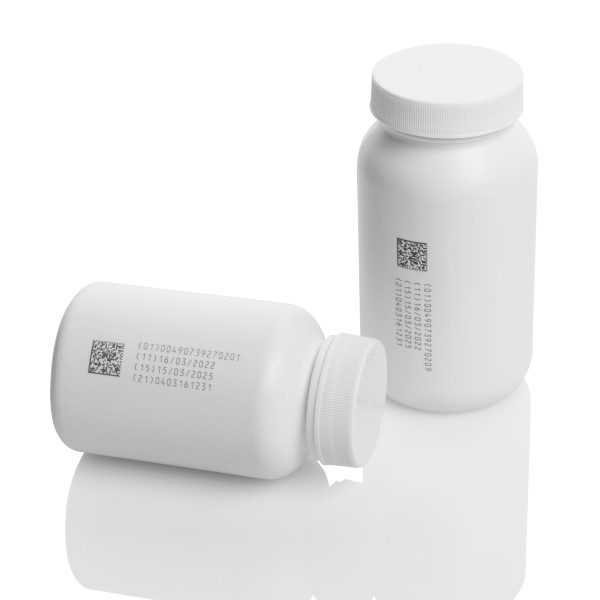

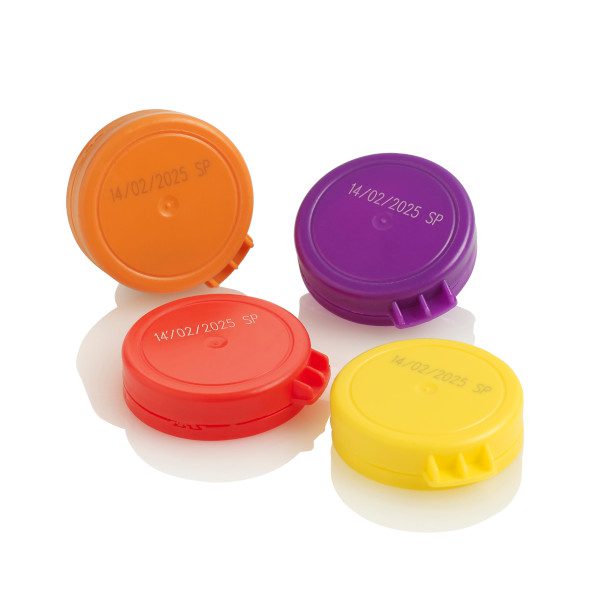

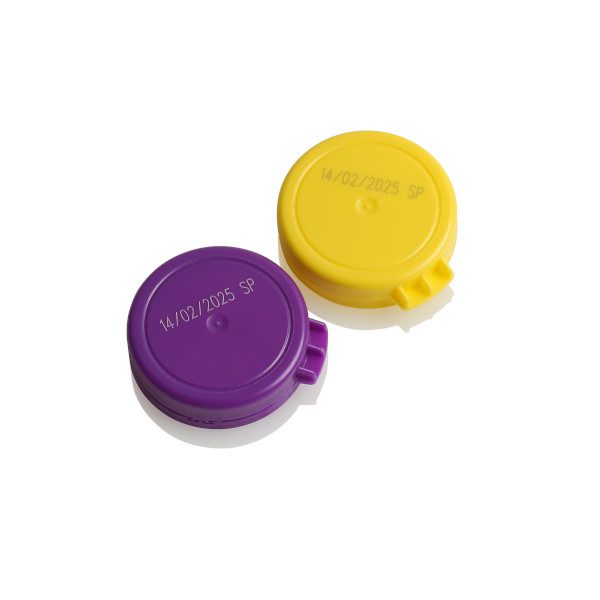

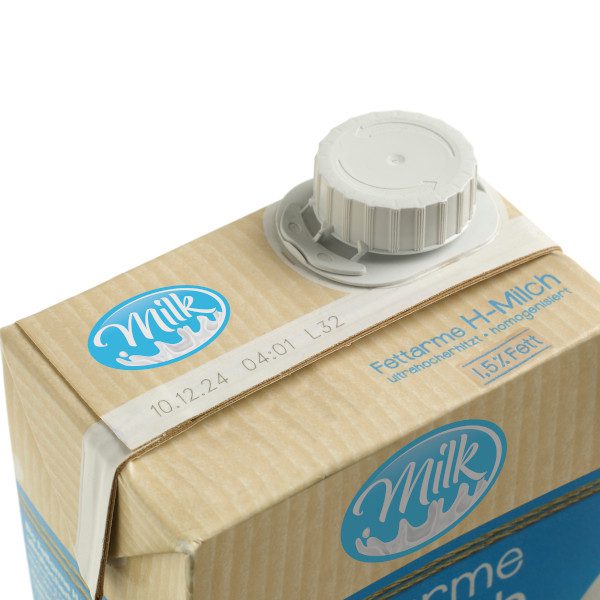

Even thin, fragile film materials can be marked safely. For coloured and white plastics, the laser pulse reacts with titanium dioxide (TiO₂) to produce clear, high-contrast coding. As TiO₂ is widely used in plastics, marking is possible anywhere on these items without the need for additives or pre-treated laser areas.

Why Opt for the Domino U510?

icona raggiungimento obbiettivi

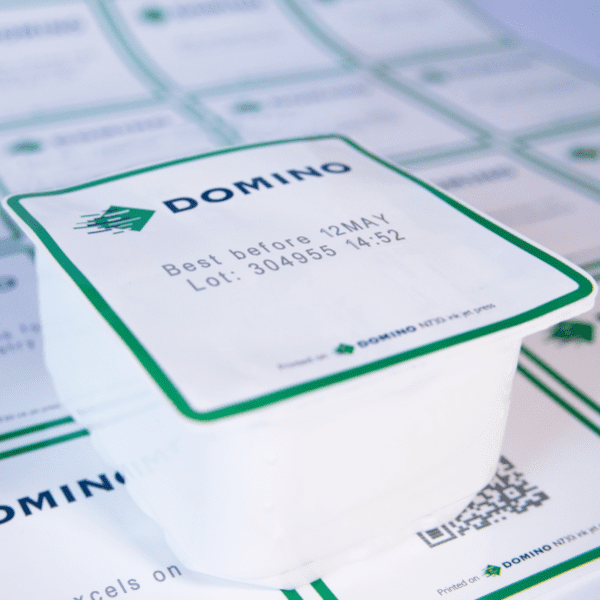

The Domino U510 produces crisp, clear codes that are easily legible to people and optical readers. It creates bright white marks on dark plastics and rich black marks on light or white plastics. Thanks to its 6W output at 100kHz, it suits fast-paced and constant production needs.

icona lavoro di squadra

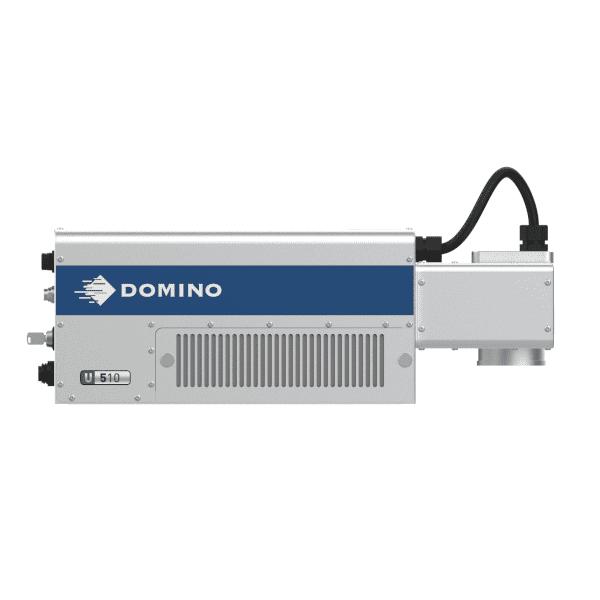

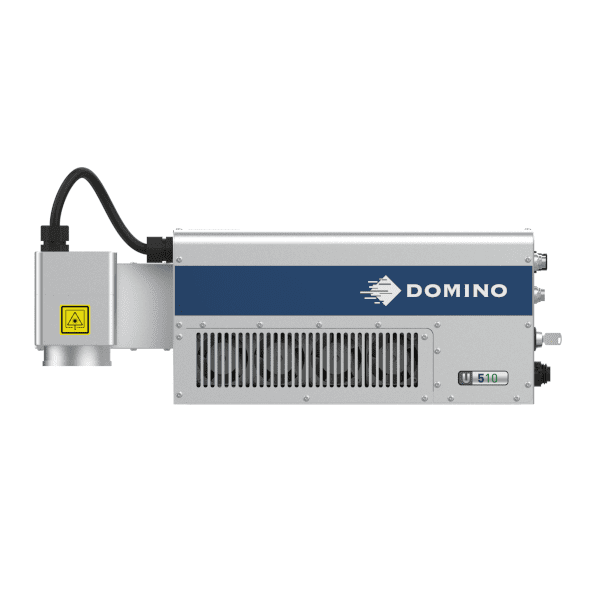

Its compact combined controller and laser module streamline installation on production systems. The integrated fan cooling removes the need for external water or air lines. The U510’s adjustable scanning head mounts horizontally or vertically to fit any setup.

icona specifiche tecniche

The Domino U510 UV laser printer is certified IP55, protecting it against dust and water to ensure stable operation over time in tough industrial environments.

Informazioni Tecniche

Coding Laser
Laser Type YVO4 – THG, Class 4
Wavelength 355 nm (invisible)
Nominal Output Power 6 W (laser) / 4.5 W (coder)
Laser Oscillation Pulsed, 5–50ns, 0–500 kHz
Focal Length / Marking Field 160 mm / 100×100 mm, 330 mm / 207×207 mm, 480 mm / 326×326 mm
Integrated Aiming Laser
Laser Type Diode Laser, Class 2
Wavelength 655 nm (visible)
Laser Oscillation Continuous Wave
Coder Specifications
Electrical Requirements 100-240 VAC, max. 3A, 50/60 Hz
Max Power Consumption 300 VA
Max Peak Laser Power 12 W
Supported Code Types & Characters Logos, barcodes, 2D codes, graphics, text, etc. / 16 fonts, multilingual including full Unicode
Minimum Character Height 0.6 mm
Dimensions & Weight 601.5 x 233.6 x 201.7 mm (W x D x H) / 21 kg
Protection Rating IP55
Temperature Range 10–40°C
Operating Humidity Max. 90% RH, non-condensing
Cooling System Air-cooled (fan)
Material Finish Anodized aluminum
Performance level (PL) ISO13849-1:2015 Category 4 PLe for safety inputs
Operating System Laser Coder: Integrated Linux / User Interface: Windows® 10
Optional Touchscreen 10.4″ TouchPanel with LMEditor QS
Communication Dynamark Protocol, Domino Cloud Interface (DCI)

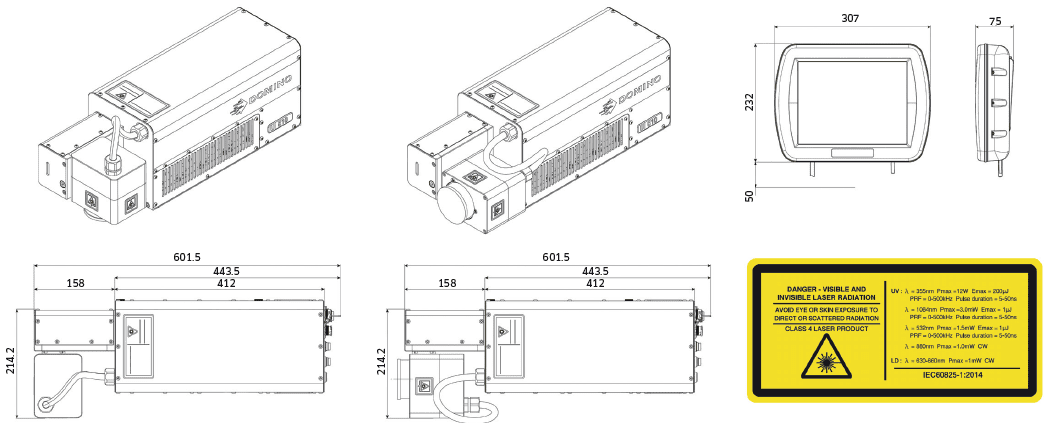

u510 domino specifiche tecniche

Domino retains the right to alter product design, layout, or specifications without notice. Some details here are general; users should confirm suitability for their specific requirements.
