Domino R350 Vision System
An All-in-One Vision Solution with Single-Supplier Advantage
The Domino R350 vision system strengthens quality assurance by verifying the clarity of every code.
Using Domino R350 minimises scrap and expenses by catching coding faults or problems as they occur. This protects against fines for breaching regulations or retailer requirements.
Alongside averting expensive product withdrawals and possible harm to brand image, the Domino R350 vision system removes the burden of manual checks, which are costly and inconsistent.
Why Select the Domino R350 Vision System?
Developed to fulfil sector standards and protocols, ensuring effortless adherence to compliance requirements.
Equipped to handle various functionalities that can be upgraded by software, supporting scalability needs.
The Domino R350 is straightforward to set up, operate, and integrate within current production lines for streamlined processes.
Technical Info & Variants
| Serie R350 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|
| Camera GE-1920IP | |
|---|---|
| Resolution | 1920 x 1080 |
| Max Frame Rate | 52 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| Serie R350 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

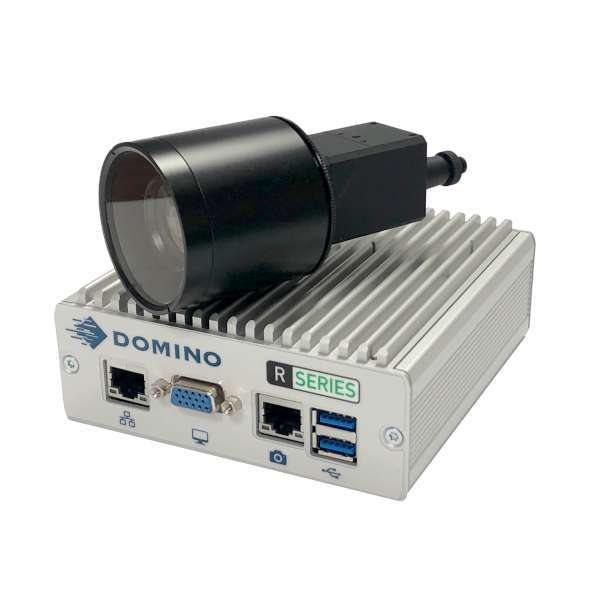

| Camera GE-2448IP | |
|---|---|
| Resolution | 2448 x 2048 |
| Max Frame Rate | 24 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| Serie R350 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|
| GR2X-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate | 50 FPS |
| Field of View | 70 mm x 55 mm |
| Working Distance | 50 mm |
| Illumination | Integrated, selectable options:
|
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Dimensions | 50 mm x 50 mm x 47 mm |
| Protection Rating | IP65 (Certification Under Validation) |
| Serie R350 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

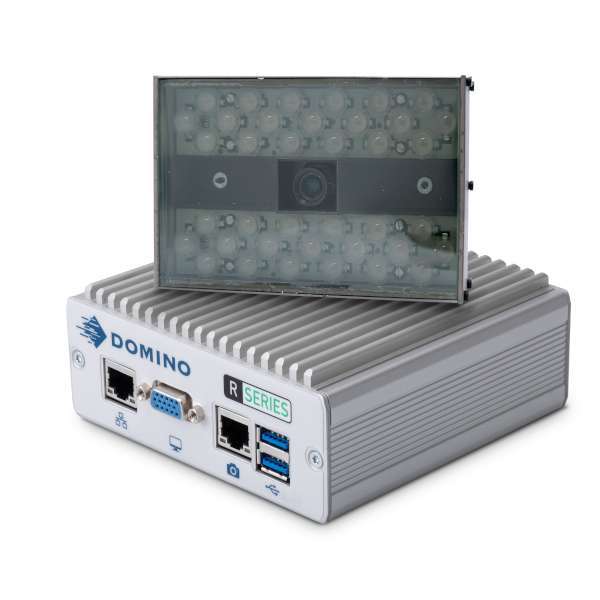

| GR6-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate | 50 FPS |
| Field of View | 112 mm x 88 mm |
| Working Distance | 76 mm |
| Illumination | Integrated: 630 nm Polarized LED |
| Minimum 1D Barcode Size | 0.3 mm (minimum bar width) |
| Minimum 2D Barcode Size | 0.46 mm/cell (minimum module size) |
| Minimum OCR Character Height | 2.27 mm |
| Dimensions | 121 mm x 76 mm x 52 mm |
| Protection Rating | IP65 (Certification Under Validation) |
