Domino R150 Vision System
The Ultimate Choice for Code Verification and Quality Assurance

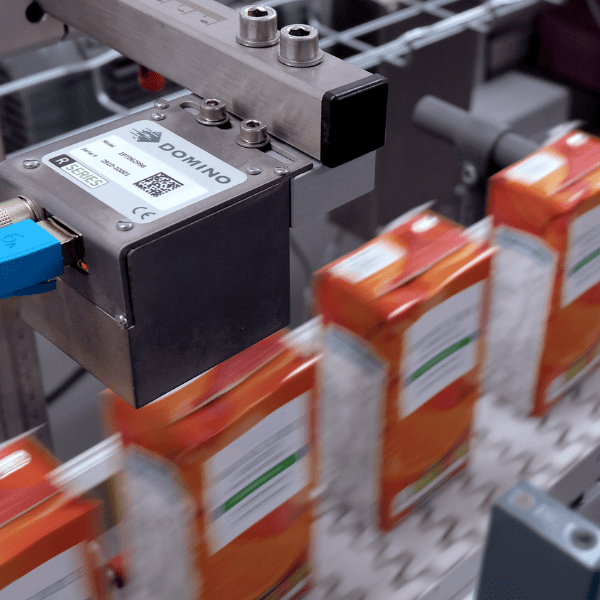

The Domino R150 vision system delivers precise code verification, checking existence, placement, clarity, and details of the codes on all products.
Far more dependable than manual or random sample inspections, the Domino R150 reduces production waste and prevents costly recalls from coding mistakes.
When connected with Domino coding and marking solutions, the system offers a single-source setup for your coding operations, enabling time savings and lower operational expenses on your lines.
Why Select the Domino R150 Vision System?
The Domino R150 vision system is tailored to function with Domino printers, guaranteeing perfect operation while also offering outstanding compatibility with other coders.

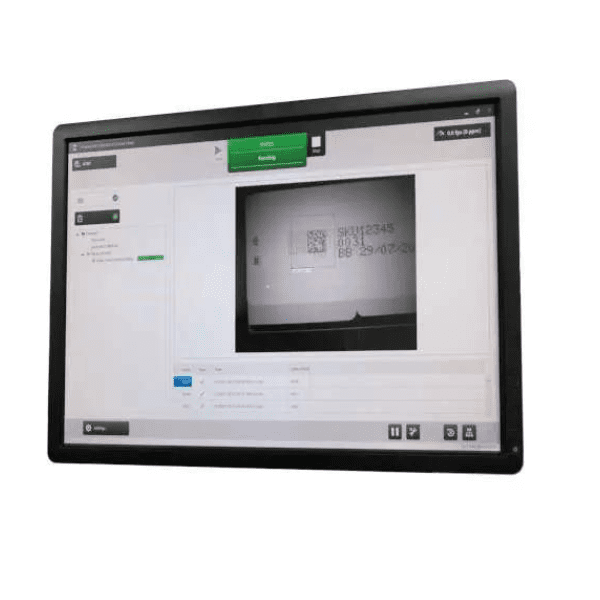

Rapid to deploy, needing just a few centimetres of space, its intelligent software provides easy and optimal incorporation into manufacturing systems.

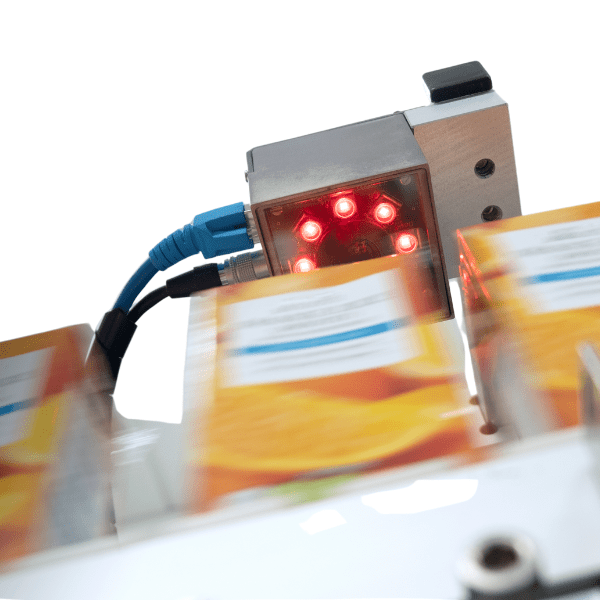

Capable of standard throughput rates reaching 60,000 units hourly (depending on application), the Domino R150 delivers swift and consistent inspection.
Technical Information & Variants
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|
| Camera GE-1920IP | |
|---|---|
| Resolution | 1920 x 1080 |
| Max Frame Rate | 52 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | External light needed / No integrated light |
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 29 mm x 29 mm x 45 mm (without lens) |
| Protection Rating | IP67 |
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

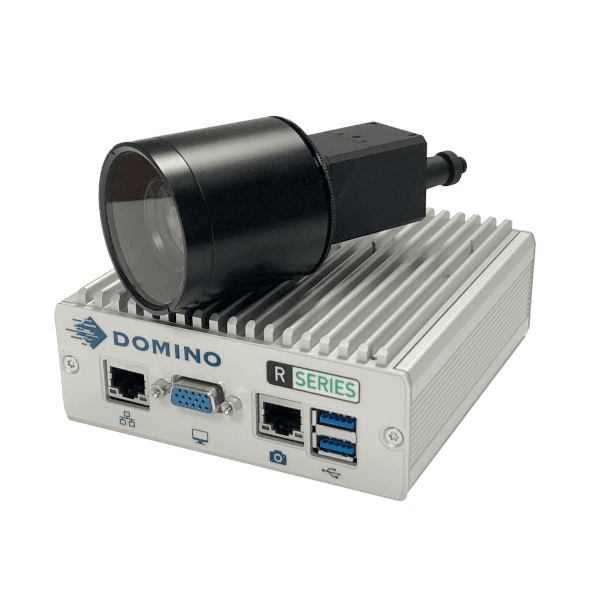

| Camera GE-2448IP | |
|---|---|
| Resolution | 2448 x 2048 |
| Max Frame Rate | 24 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | No integrated lighting / Needs external source |
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 29 mm x 29 mm x 45 mm (excluding lens) |
| Protection Rating | IP67 |
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

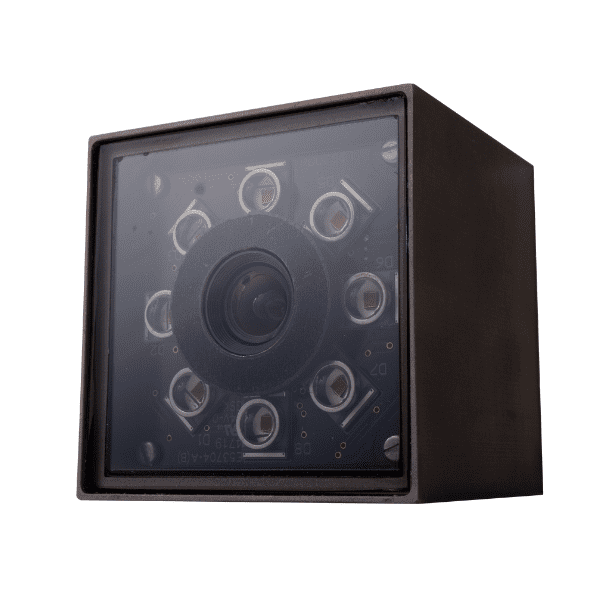

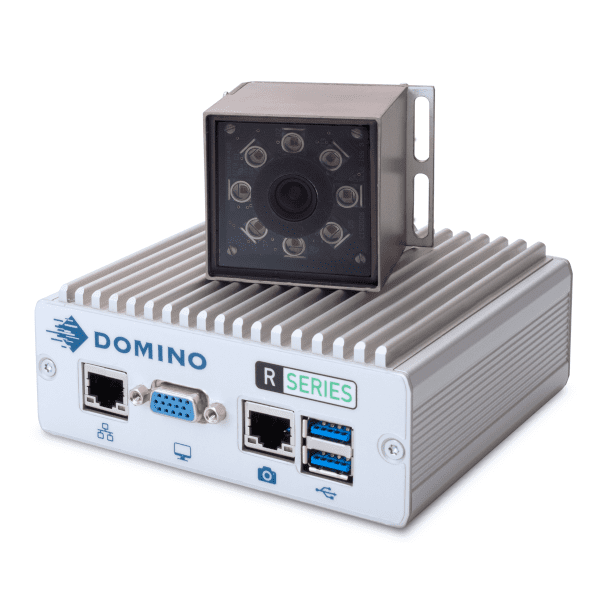

| Camera GR2X-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate | 50 FPS |
| Field of View | 70 mm x 55 mm |
| Working Distance | 50 mm |
| Illumination |
|
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 50 mm x 50 mm x 47 mm |
| Protection Rating | IP65 (Certification in process) |
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

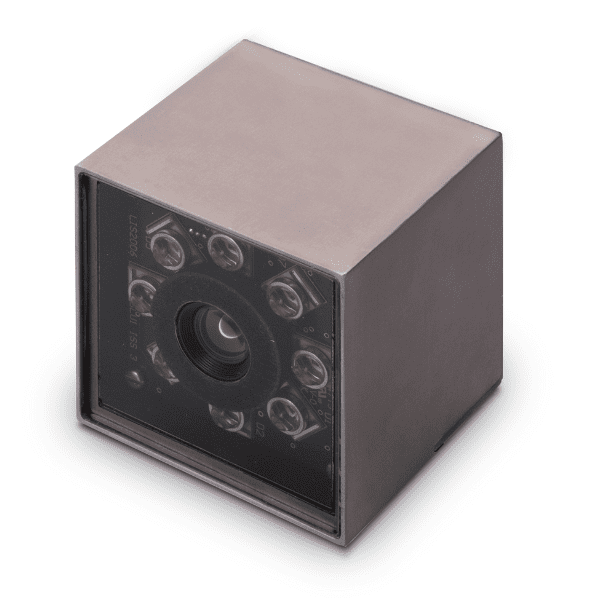

| Camera GR6-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate | 50 FPS |
| Field of View | 112 mm x 88 mm |
| Working Distance | 76 mm |
| Illumination | Built-in: Polarised LED 630 nm |
| Minimum 1D Barcode Size | 0.3 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.46 mm/cell (nominal module size) |
| Minimum OCR Character Height | 2.27 mm |
| Camera Dimensions | 121 mm x 76 mm x 52 mm |
| Protection Rating | IP65 (Certification in process) |
