Domino Mx351i-eC Print & Apply Systems


Reliable and Streamlined Corner Labelling

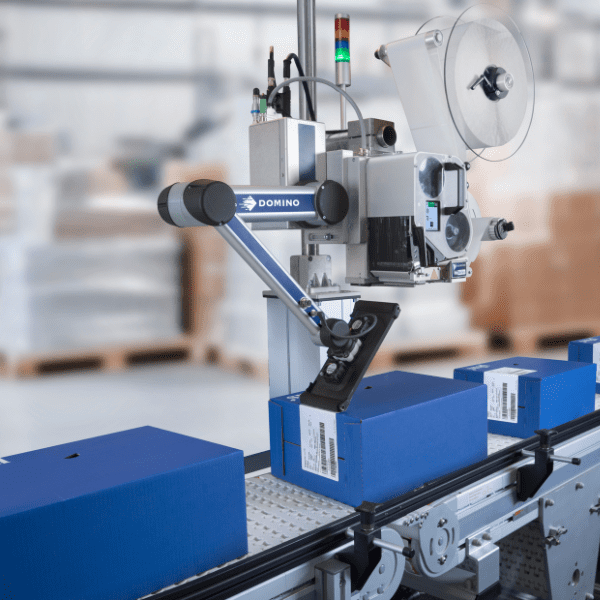

The Domino Mx351i-eC print & apply system introduces a fresh standard within labelling technologies, engineered for effortless integration into manufacturing environments in diverse sectors including pharmaceuticals and food production.

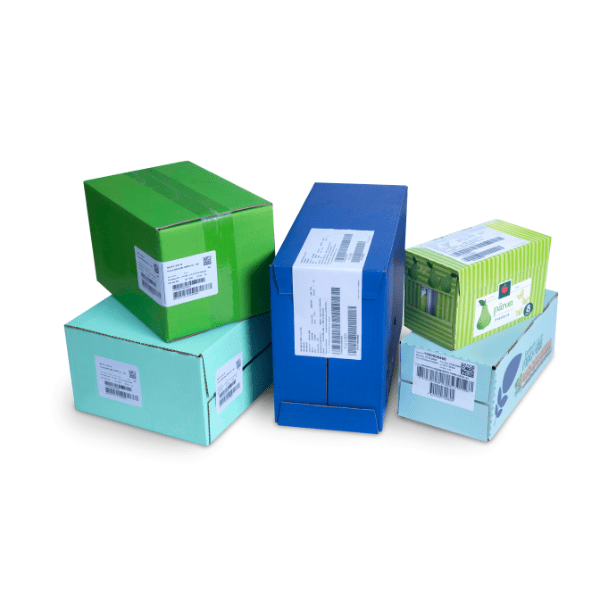

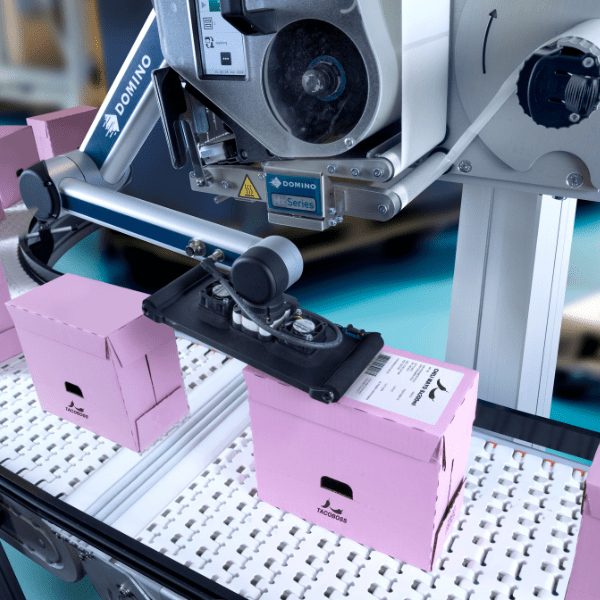

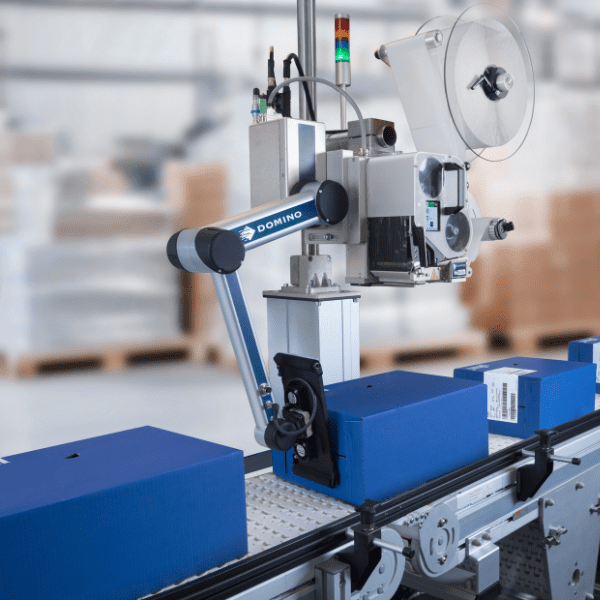

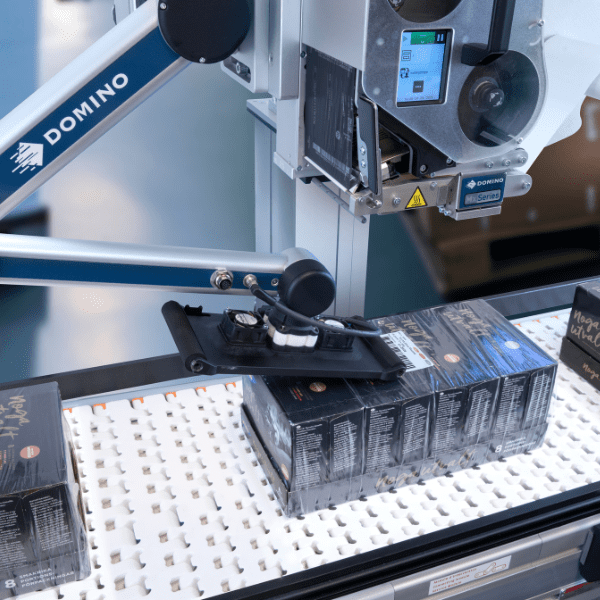

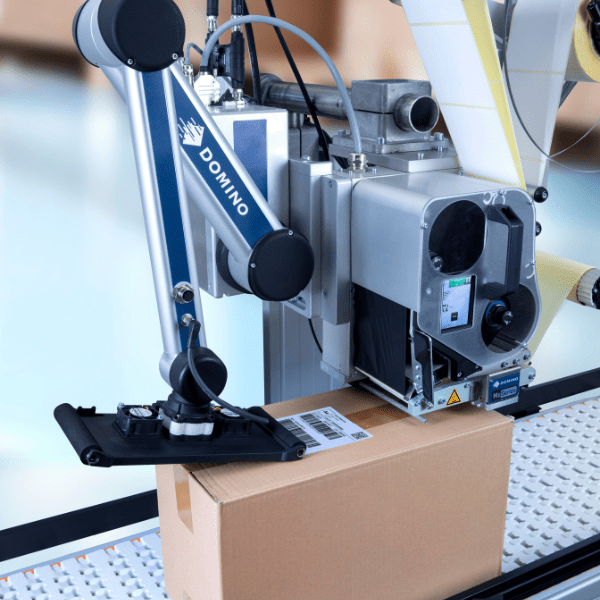

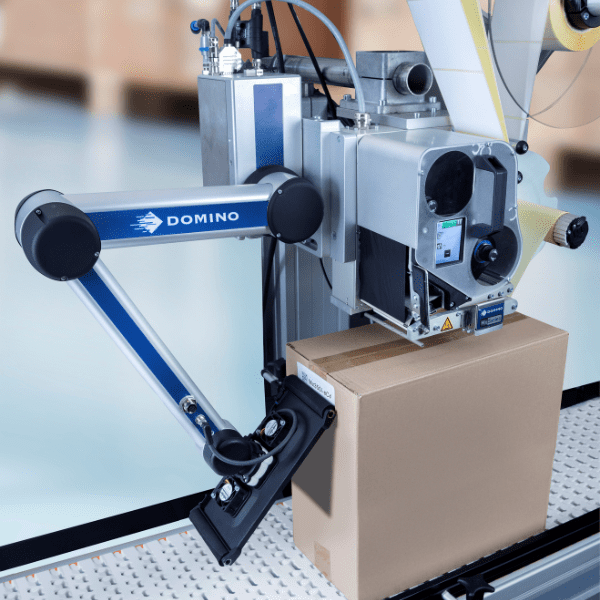

Employing a motorised applicator arm, this flexible and space-saving equipment applies labels to various package surfaces, including edges, while dramatically lowering power usage and significantly cutting down on compressed air demands. Additionally, it offers superior connectivity features.

Delivering an 80% energy saving and 90% reduction in air consumption compared with alternative labelling solutions, the Domino Mx351i-eC print & apply system fits seamlessly into any packaging process. Its enhanced connectivity enables flawless integration with ERP, WMS, and MES platforms on your production floor, ensuring smooth data exchange and improved process performance.

Reasons to Select the Domino Mx351i-eC Print & Apply Systems

icona tecnico

The Domino Mx351i-eC has been created for straightforward operation, incorporating a built-in interface with an optional 10-inch detached touchscreen.

icona come funziona

Its advanced connectivity makes it easy to connect with ERP, WMS, and MES systems across your production workflow.

icona imballaggi secondari

The Domino Mx351i-eC serves as an adaptable choice for numerous labelling applications, allowing smooth transitions as production requirements develop.

Technical Info

Model Mx351i-eC.D4
Print width 4-inch (108mm)
Print technology Thermal transfer / Direct thermal
Print resolution 12 dots/mm (300dpi)

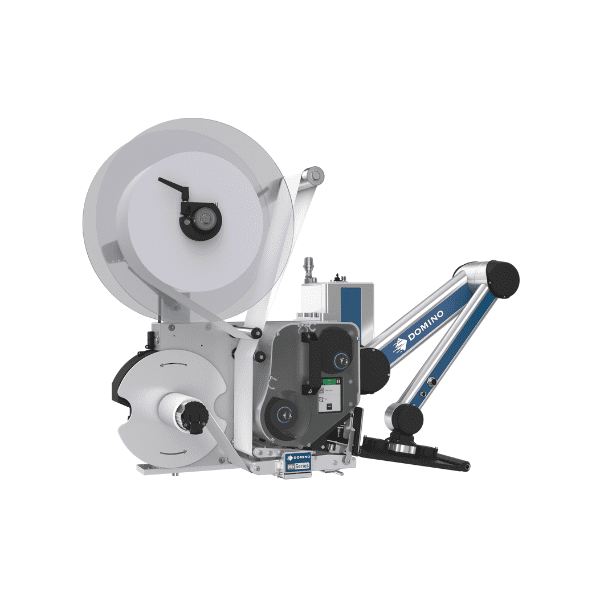

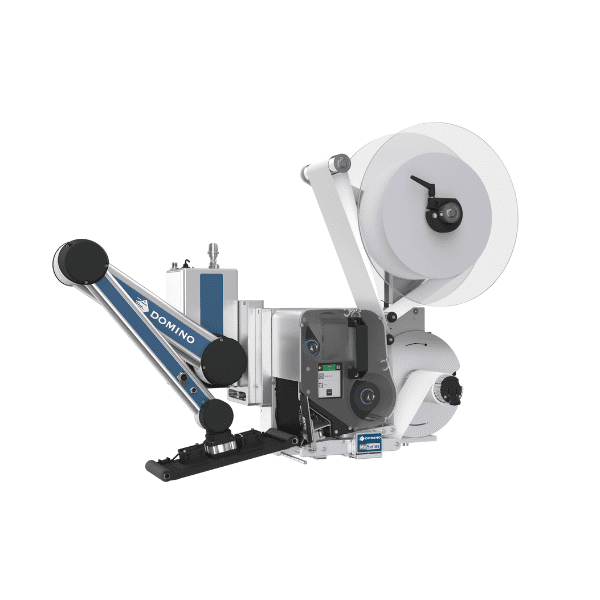

Printer variants Left hand or Right hand
Max print speed 400mm/s
Product motion Stationary

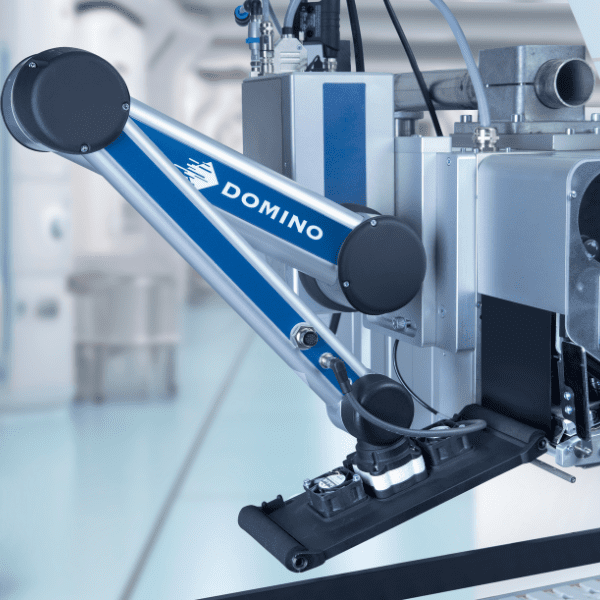

Apply method Wipe by electric arm
Label position(s) lati applicazione etichette
Recommended label width 25-110mm
Recommended label length 50-254mm
Label & ribbon roll length Up to 600m
Input voltage 90-250VAC 50/60Hz
Communication 4x Ethernet, TCP/IP, 2x USB-A, 1x USB-B
I/Os (configurable) 12 inputs and 12 outputs
TouchPanel 6 (optional UI) 10.1-inch touchscreen
Multi-language support

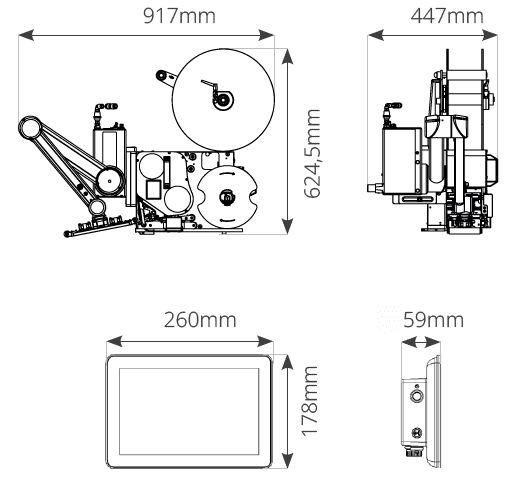

specifiche tecniche mx351i-ec
