Domino Mx350i-DTP Print & Apply Systems


The Optimal Solution for Hand Label Application

The Domino Mx350i-DTP print & apply equipment is the perfect choice for manufacturing lines where labels are manually applied as the best method.

Created to generate labels for cartons, boxes, pallets, and trays, the Mx350i-DTP offers excellent reliability and durability. Featuring the same user platform and connection features as other Mx series units, it is the ideal standalone or backup device.

 TECHNICAL INFO   |   VIDEO

Why Opt for the Domino Mx350i-DTP Print & Apply Solution?

icona tecnico

Effortless System Connectivity: The enhanced integration features of the Domino Mx350i-DTP manual labelling system enable simple compatibility with ERP, MES, WMS platforms and any Mx Series models dedicated to automatic labelling.

icona come funziona

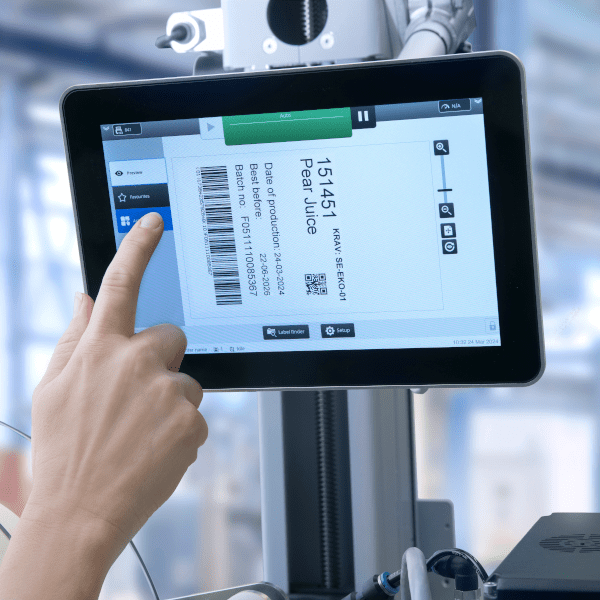

Simple User Controls: Featuring an intuitive built-in interface and the optional 10” external touchscreen, the Domino Mx350i-DTP print & apply equipment is incredibly straightforward to operate.

icona integrazione 2

Engineered for Maximum Operation Time: The solid build and smart operational features reduce maintenance downtime and changeover of consumables, optimising production continuity.

Technical Information

Mx350i-DTP4 Mx350i-DTP6
Print Width 4 inches (108 mm) 6 inches (162 mm)
Printing Technology Thermal Transfer / Direct Thermal Thermal Transfer / Direct Thermal
Print Resolution 12 dots/mm (300 dpi) 12 dots/mm (300 dpi)
Printer Versions Left or Right Left or Right
Max. Print Speed 400 mm/s 400 mm/s
Recommended Label Width 25-110 mm 25-150 mm
Recommended Label Length 15-600 mm 15-600 mm
Label and Ribbon Roll Length Up to 600 m Up to 600 m
Power Supply 90-250VAC 50/60Hz 90-250VAC 50/60Hz
Communication 4x Ethernet TCP/IP, 2x USB-A, 1x USB-B 4x Ethernet TCP/IP, 2x USB-A, 1x USB-B
I/O (Configurable) 12 inputs and 12 outputs 12 inputs and 12 outputs

Technical specifications for Domino Mx350i-DTP print & apply system for manual label application

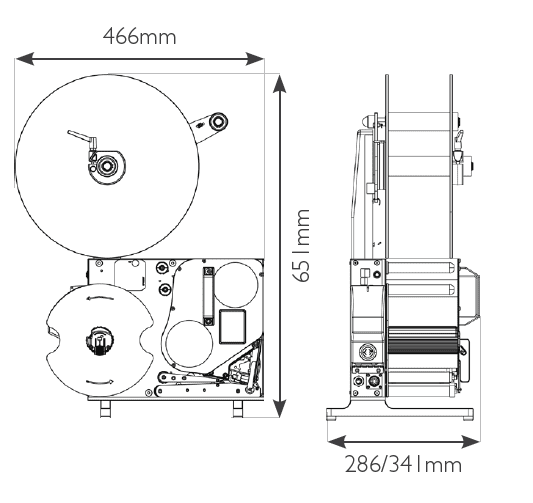

All dimensions are expressed in millimeters. Drawing not to scale, for illustrative purposes only.
