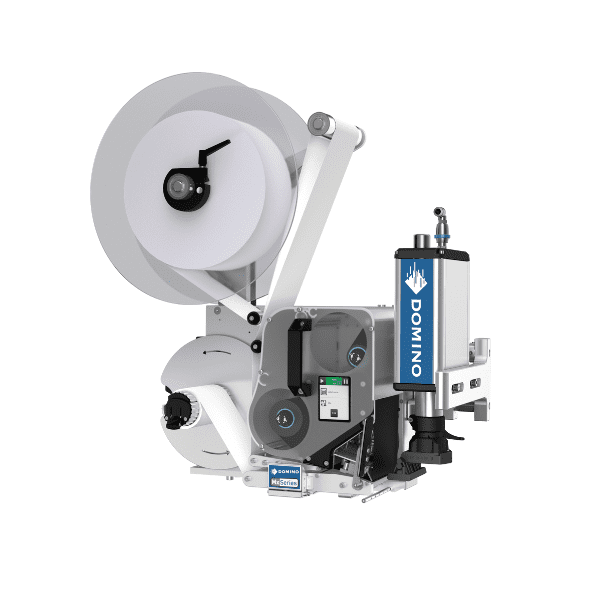

Domino Mx350i-B Print & Apply Systems


The Print & Apply System That Will Amaze You

The Domino Mx350i-B is a compact and economical print & apply system that provides contactless high-speed labelling for static and dynamic items.

Featuring the same appearance and advantages as other units in the Mx series, the Mx350i-B is a perfect choice for fast-paced operations, items with delicate or uneven surfaces, and when labels need to be applied without contact.

The Mx350i-B is extremely versatile and comes with multiple configurations to streamline and improve labelling tasks.

Built for long-lasting use, its flexibility enables operators to update labelling parameters over time without expensive replacements.

Moreover, integrated with Domino’s R-Series Vision System, it can automatically inspect codes, checking presence, alignment, and clarity, guaranteeing each product is properly labelled while staff can concentrate on different activities.

Why Choose the Domino Mx350i-B Print & Apply Systems?

icona integrazione 2

Compact and Simple to Integrate: The Domino Mx350i-B is the most compact print & apply solution on the market. Available in left or right-hand models, it can be incorporated into current production setups with minimal adjustments.

icona come funziona

Effortless Connectivity: Its advanced network features ensure smooth integration with ERP, WMS, and MES systems along your line, enabling live data exchange.

icona imballaggi secondari

Adaptable and Eco-Conscious Labelling: The Domino Mx350i-B accepts different ribbon formats, offering a premium, sustainable labelling option suited for diverse uses.

Technical Information

Printer Specifications

Mx350i-B4 Mx350i-B6
Printhead Width 4 inches (108 mm) 6 inches (162 mm)
Printing Technology Thermal transfer / Direct thermal Thermal transfer / Direct thermal
Resolution 12 dots/mm (300 dpi) 12 dots/mm (300 dpi)
Versions Left and right Left and right
Max. Print Speed 400 mm/s 250 mm/s
Product Distance (D) 10-100 mm 10-100 mm
Product Movement Moving or stationary Moving or stationary
Application Method Blow (contactless) Blow (contactless)
Label Position Label application side Domino Mx350i-B Label application side Domino Mx350i-B
Recommended Label Width 50-110 mm 50-150 mm
Recommended Label Length 30-100 mm 30-100 mm
Label and Ribbon Roll Length Up to 600 m Up to 600 m
Power Supply 90-250VAC 50/60Hz 90-250VAC 50/60Hz
Communication 4x Ethernet TCP/IP, 2x USB-A, 1x USB-B 4x Ethernet TCP/IP, 2x USB-A, 1x USB-B
I/O (Configurable) 12 inputs and 12 outputs 12 inputs and 12 outputs

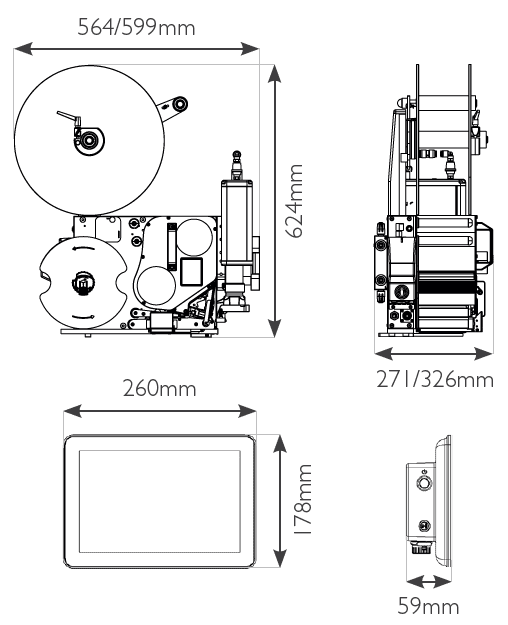

Technical specifications Domino Mx350i-B
