Domino M230i-CW100/CWR100 Print & Apply Systems


The Optimal Choice for Corner-Wrap Label Application on Cartons and Outer Packaging

The Domino M230i-CW100/CWR100 print & apply solutions are the perfect option for businesses requiring accurate and consistent corner-wrap labelling for cartons and secondary packs.

Developed to maximise stability, operator safety, and placement accuracy, the Domino M230i CW100 and CWR100 can be installed seamlessly alongside case erectors, conveyor systems, and various end-of-line equipment, streamlining workflows and enhancing throughput.

The Domino M230i-CW100/CWR100 systems are versatile and sturdy, managing a large variety of label dimensions while occupying minimal space along production lines.

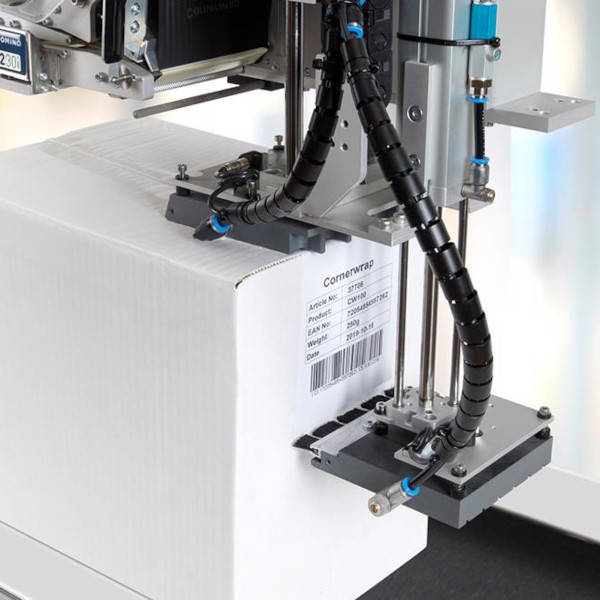

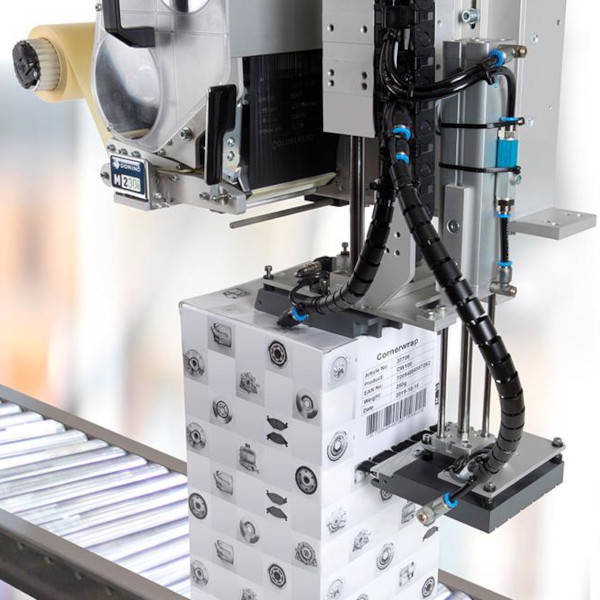

Their special pad mechanism provides exact label positioning and delivers clear, scannable prints.

Moreover, all Domino M-Series print & apply models include global technical assistance.

 TECHNICAL INFO   |   ACCESSORIES   |   VIDEOS

Why Opt for the Domino M230i T4-T6 Print & Apply Solutions?

icona raggiungimento obbiettivi

Simplified and User-Friendly Controls: The Domino CW100 and CWR100 are built for simple operation, featuring an optional touch-screen control panel for easy management.

icona velocità

Boosted Productivity: These units deliver extended printhead durability, reduced material waste, and rapid printhead and supply changes, maximising efficiency.

icona imballaggi secondari

Superior Precision for Secondary Pack Labelling: The tailored pad structure of the Domino M230i-CW100/CWR100 ensures exceptional placement accuracy and compatibility with various label sizes.

Technical Information

M230i-CW100 M230i-CWR100
Print Width 108 mm 108 mm
Printing Technology Thermal Transfer / Direct Thermal Thermal Transfer / Direct Thermal
Resolution 12 dots/mm 12 dots/mm
Orientation Left or Right Left or Right
Label & Ribbon Length Up to 600 m Up to 600 m
Capacity 12 labels per minute* 12 labels per minute*
Product Distance from Pad Center Up to 280 mm Up to 280 mm
Label Size 75×150 mm** – 110×254 mm 75×150 mm** – 110×254 mm
Dimensions 654 x 262 x 715 mm 654 x 262 x 716 mm

* Based on application type

** Corner Wrap applications

Control Unit

All M-Series printers include the PCU controller.

Communication 2 x RS232, 1 x USB 2.0, Ethernet
I/O (Configurable) 10 Inputs and 10 Outputs
User Interface Graphic Display with 25 Languages
Dimensions (L x H x D) 406 x 128 x 265 mm

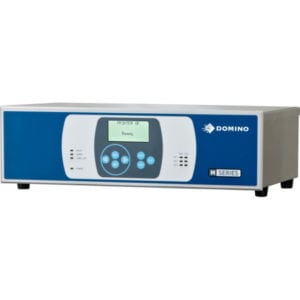

Domino M230i-S and SP Print & Apply Systems - Domino PCU Control Unit

Accessories

The M230i-CW100 and M230i-CWR100 print & apply devices can be equipped with optional extras, available separately:

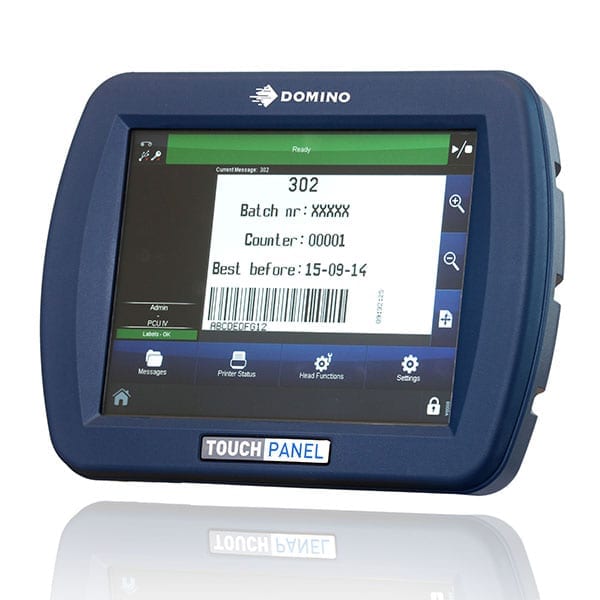

  • TouchPanel

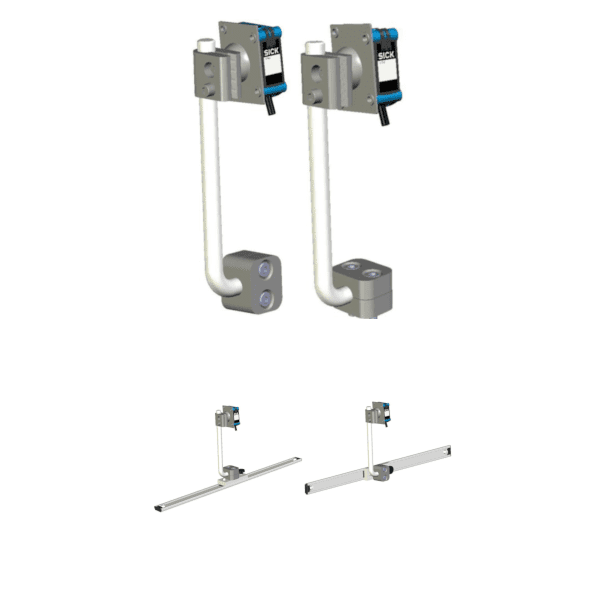

  • Print/Application Start Sensors

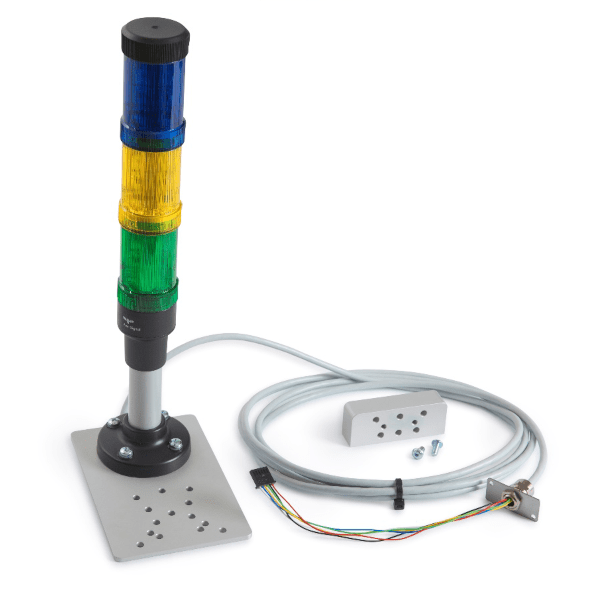

  • Signal Tower
  • Floor Stand

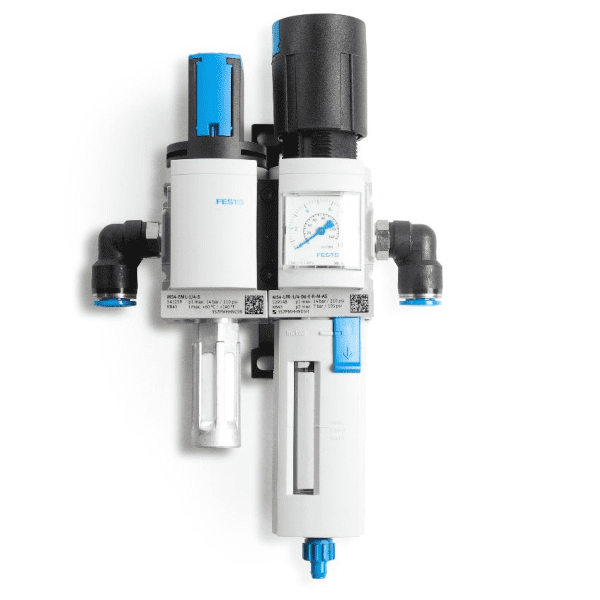

  • Air Kit
  • Software

Videos
