Domino Dx660i: Adaptable High-Velocity Coding Platform

Driven by a 60-watt CO₂ engine, the Domino Dx660i laser system effortlessly engraves oversized, data-dense markings on rapid-fire production lanes and on challenging surfaces including PET packaging and glass containers.

Built to handle variable information for end-to-end traceability, brand protection and interactive consumer engagement—all while minimising waste through dependable print integrity—the Dx660i future-proofs your marking strategy.

The newest Domino Dx Series generation merges cutting-edge design with rigorous craftsmanship to integrate smoothly on the line. Installation, daily operation and upkeep are streamlined, delivering an elevated coding platform.

What Sets the Domino Dx660i Industrial CO₂ Laser Apart?

icona raggiungimento obbiettivi

The new HS ultra-speed scan heads boost throughput for demanding, high-volume runs.

icona integrazione

Dx660i keeps performing in ambient temperatures up to 45 °C, safeguarding uptime in warm facilities.

icona tecnico

A browser-based dashboard plus an intuitive HMI panel make day-to-day control effortless.

Detailed Technical Overview

Laser Type
Dx260i Dx360i Dx660i
Laser technology CO₂ CO₂ CO₂
Laser source 20W, wavelengths 9.3, 10.2, 10.6μm 30W, wavelengths 9.3, 10.2, 10.6μm 60W, wavelengths 9.3, 10.2, 10.6μm
Expected lifetime 50.000h MTBF 50.000h MTBF 50.000h MTBF
Coding Format

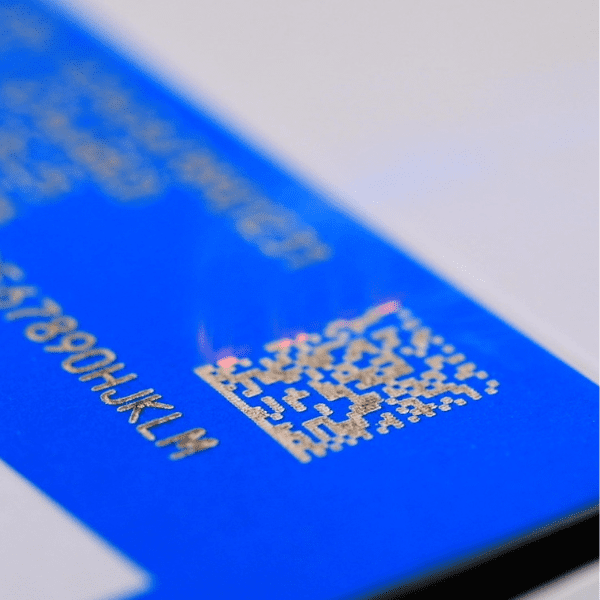

Coding content Laser optimised fonts for high-speed marking and standard industrial fonts. Graphics, logos, standard industrial machine readable code (1D, 2D) formats (DataMatrix, GS1, QR). Intuitive GS1 Digital Link support. Supporting traceability with serialisation data, sequential and batch numbering. Synchronized clock / Network Time Protocol support (NTP).
Focal length from 80mm to 600mm
Marking field from min. 57x57mm2 to max. 379x582mm2
Advanced Features Aiming beam, Aim & Code

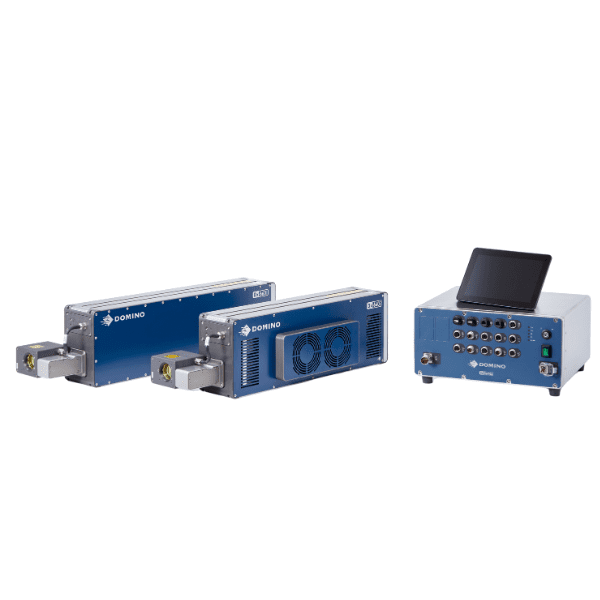

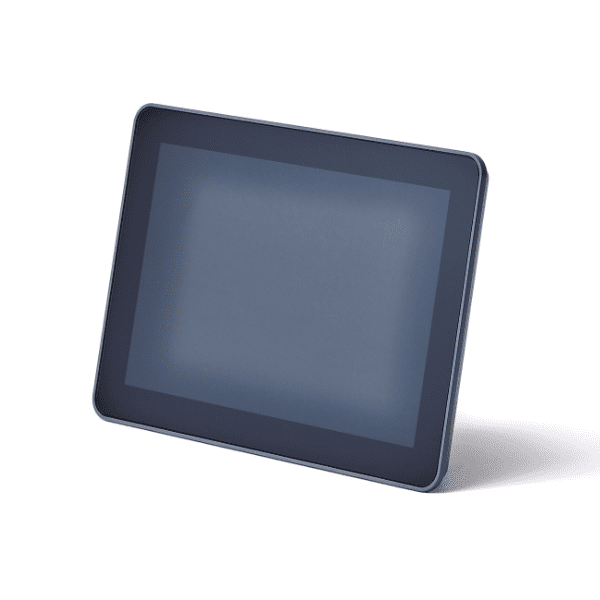

User Interface Web-based user interface, ability to configure multiple parallel access points, optional 10.1’’ touch panel
System Specification
Scan head orientations Multitude of scan head orientations including 360° rotatable variant. More than 50 beam orientation variants. Additionally support for customisation and solution integration.

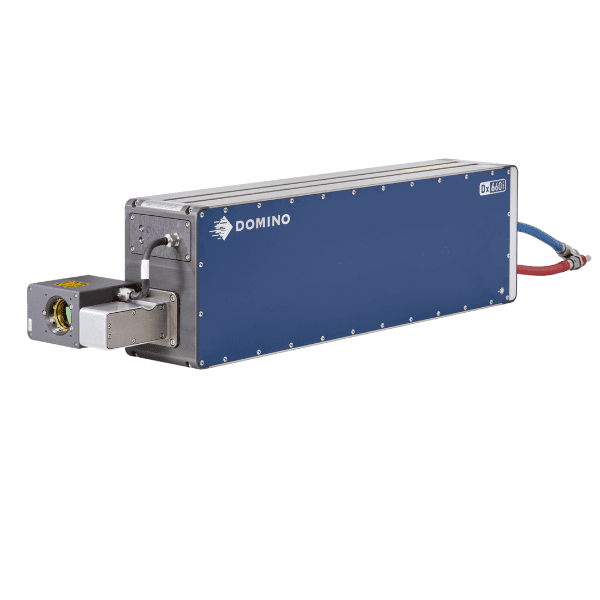

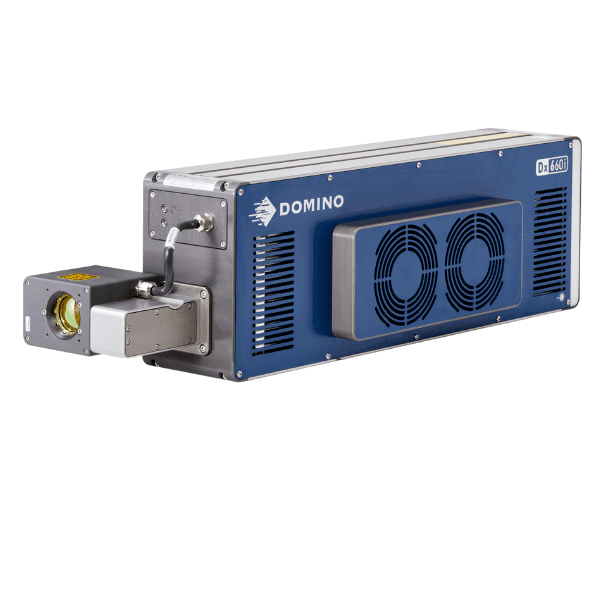

Ingress Protection Laser module: IP54 fan cooled, optional IP65 compressed air cooling. Controller: IP55
Operating temperature 5˚C – 45˚C
Operating humidity max. 90% RH, non-condensing
Electrical supply multivoltage 90-264V, 50/60Hz
Input and Outputs, Interfaces
Inputs/outputs Multiple inputs and outputs available e.g. extractor, compressed air-kit, encoder, product detect
(NPN, PNP), beacon and interlocks, standard GPIO, additional optional GPIO available.
Interfaces/Protocols Ethernet, USB, Dynamark Protocol, EtherNet/IP™
Options
Accessories Extraction including optimised shrouds, airknife for lens cleaning, multiple brackets, cables and stands for integration support
Certification Marking: CE**, cTÜVus, UKCA / Fulfills requirement: NRTL, ROHS, FDA listed, EMC, FCC.

** Partly Completed Machinery as per Machinery Directive (2006/42/EC), CE marking according to ROHS (2011/65/EU) and EMC(2014/30/EU)

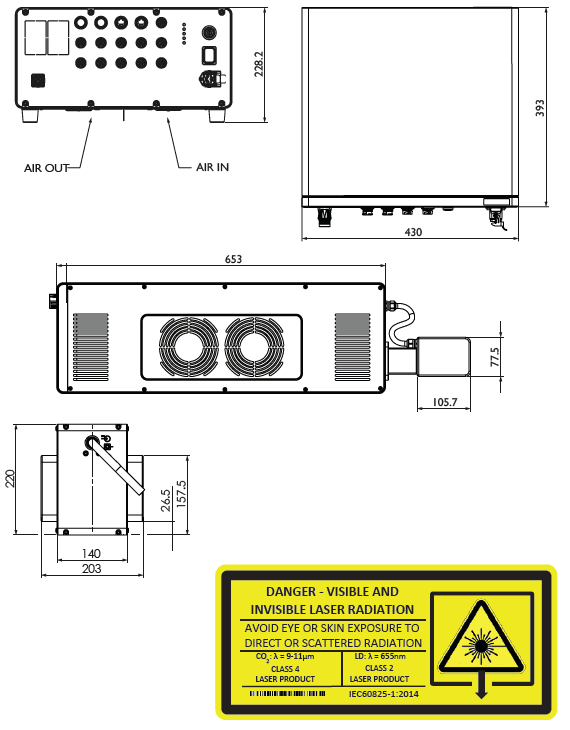

specifiche tecniche marcatore laser dx660i
