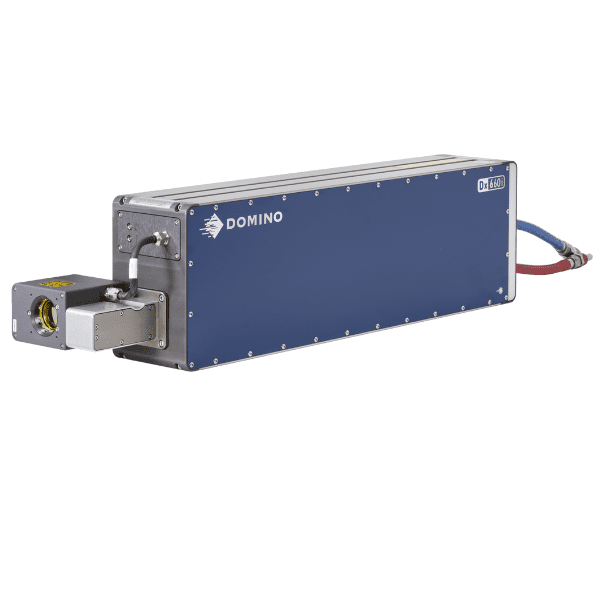

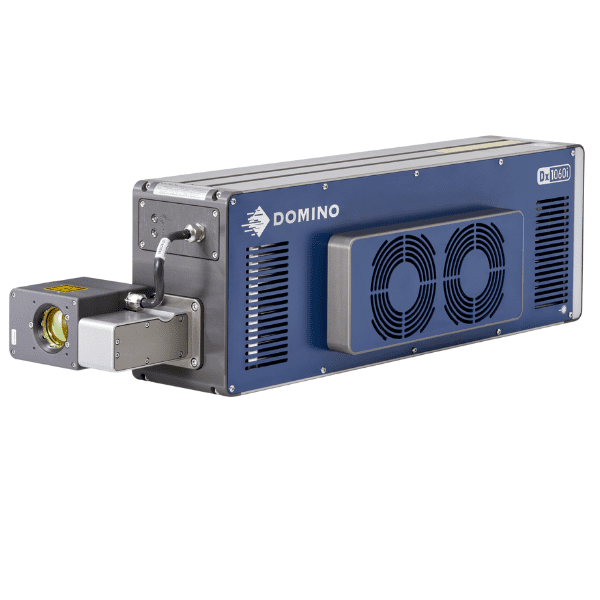

Domino Dx1060i Industrial CO₂ Laser Coder – 100 Watt


Domino Dx1060i: 100 Watt Laser Coder for Rapid, High-Precision Marking

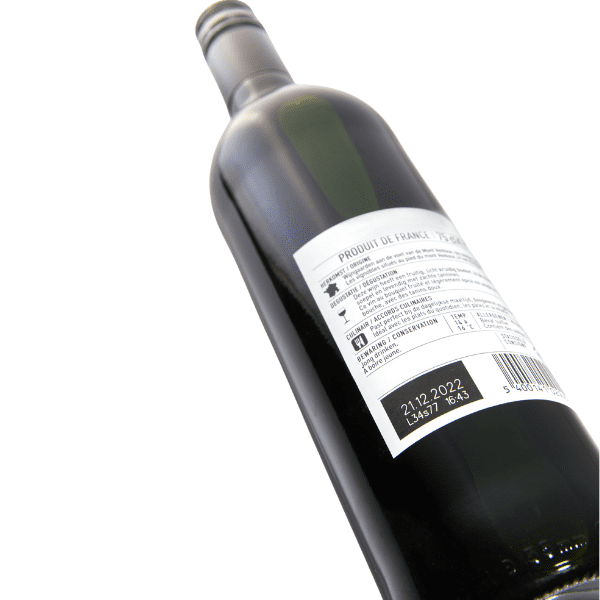

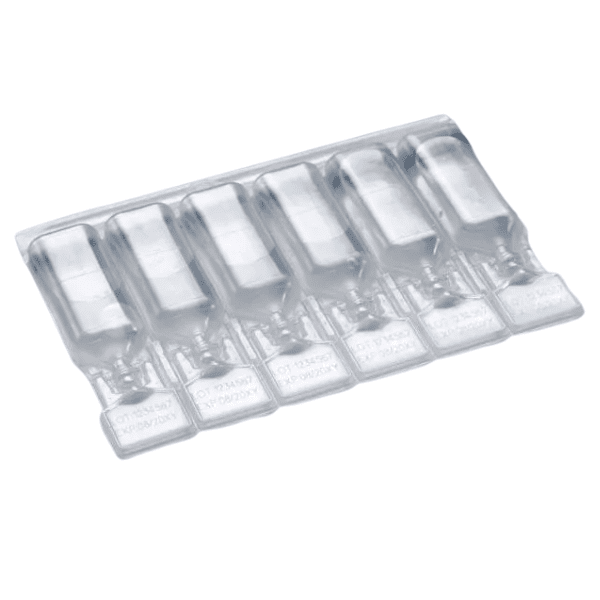

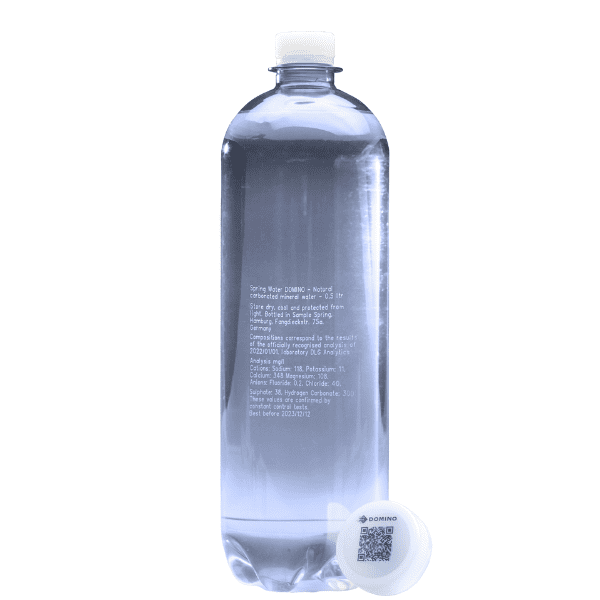

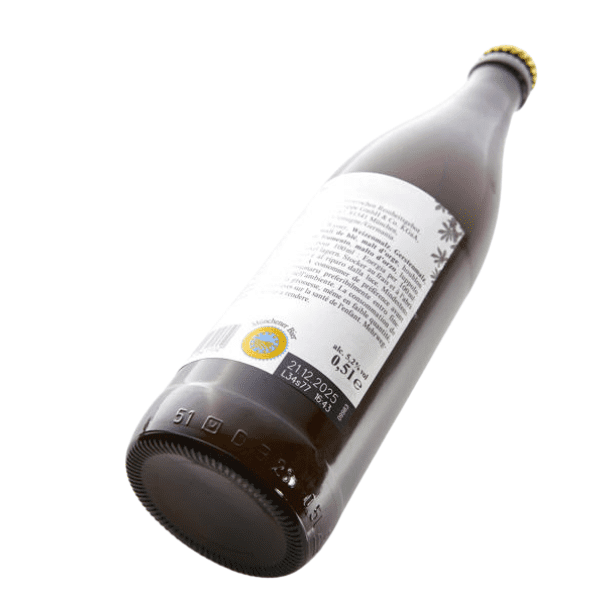

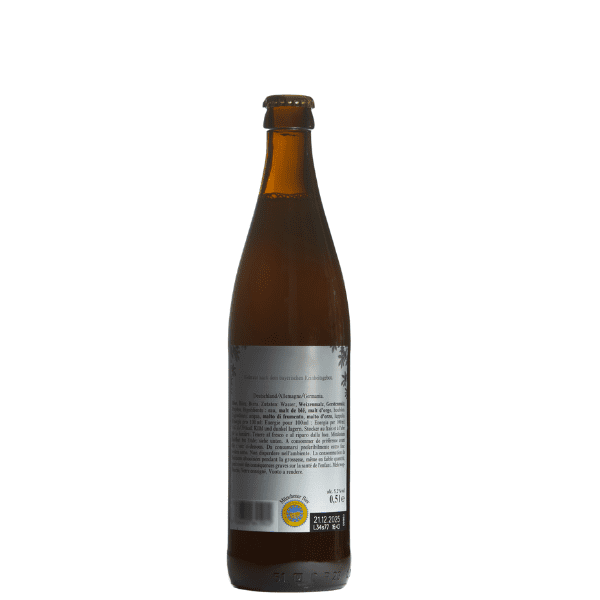

Domino Dx1060i is a 100 Watt CO₂ laser coder built to ensure reliable, high-definition coding across fast and demanding production environments. Its laser output delivers clean and consistent results on PET, HDPE, glass, paper and multilayer materials, maintaining precision even at elevated line speeds. This makes it a valuable choice for high-volume operations where long-lasting, readable codes are essential for traceability and product protection.

The system integrates advanced beam-control algorithms that can boost throughput by up to 30% compared with earlier solutions, while ensuring uniform code quality across different substrates. Full support for variable data, 1D and 2D codes and GS1 standards is included, together with serialisation and NTP time synchronisation for applications requiring exact data integrity.

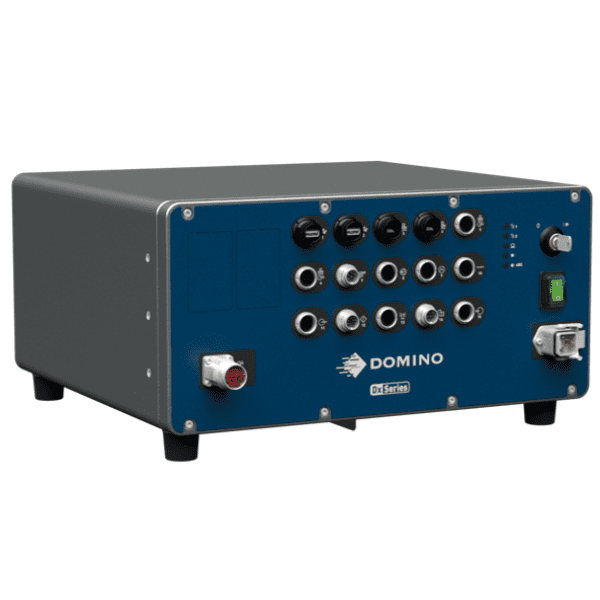

Even with its performance level, the coder is engineered for demanding environments: the marking head is available in IP54 or IP65, and the controller carries an IP55 rating, ensuring stable operation in dusty, humid or wash-down conditions. The unit remains fully operational up to 45°C, supporting maximum uptime on intensive production lines.

With a long-life laser tube and built-in diagnostics, the Dx1060i keeps maintenance requirements extremely low.

Why Choose the Domino Dx1060i Industrial CO₂ Laser Coder

achievement icon
100 Watt CO₂ laser for rapid coding
High output and advanced optics deliver crisp, stable marking even on difficult materials.

integration icon
Flexible integration options
More than 50 optical setups, fully rotatable head and compatibility with ERP, MES and industrial protocols.

technical support icon
Monitoring tools and low maintenance
Cloud diagnostics, automation features and durable operation in harsh environments up to 45°C.

Technical Information

Laser 100 Watt CO₂
Laser technology CO₂, wavelengths 9.3 μm, 10.2 μm, 10.6 μm
Expected lifetime 50,000 hours MTBF

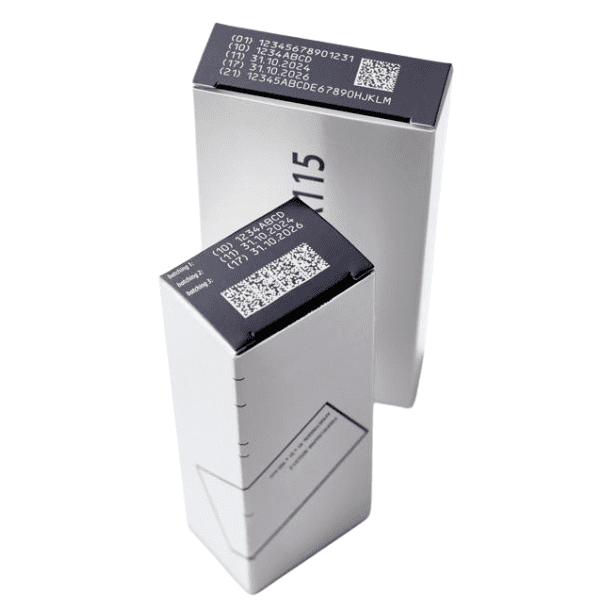

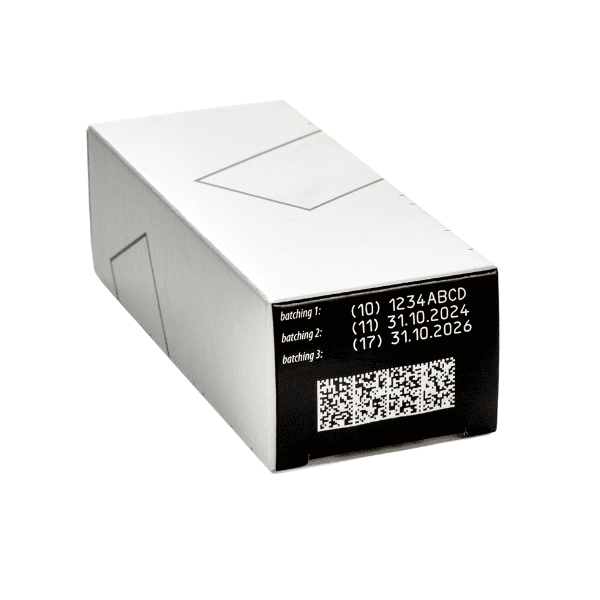

Supported content High-speed optimised fonts, 1D/2D codes (GS1, DataMatrix, QR), graphics, logos, variable data, serialisation
GS1 support GS1 Digital Link and GS1 traceability standards
Focal lengths From 80 mm to 600 mm
Marking field From 57×57 mm to 379×582 mm

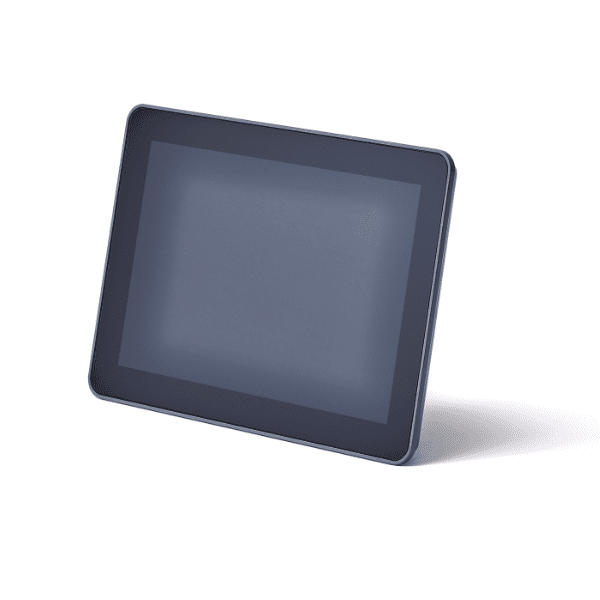

User interface Web-based interface; optional 10.1’’ touch panel
Head orientation 360° rotatable head with more than 50 optical configurations
IP rating Laser IP54 (optional IP65), controller IP55
Operating temperature 5°C – 45°C
Operating humidity Max 90% RH non-condensing
Power supply 90–264 V, 50/60 Hz
Inputs/outputs Inputs/outputs for extraction, compressed air, chiller, encoder, product detection, beacon, interlock, GPIO
Interfaces and protocols Ethernet, USB, RS-232, EtherNet/IP™, EDC, Dynamark Protocol
Software features Automation, Domino Cloud, advanced security, external data capture
Accessories Extraction systems, airknife, mounts, brackets, cabling, dedicated optics

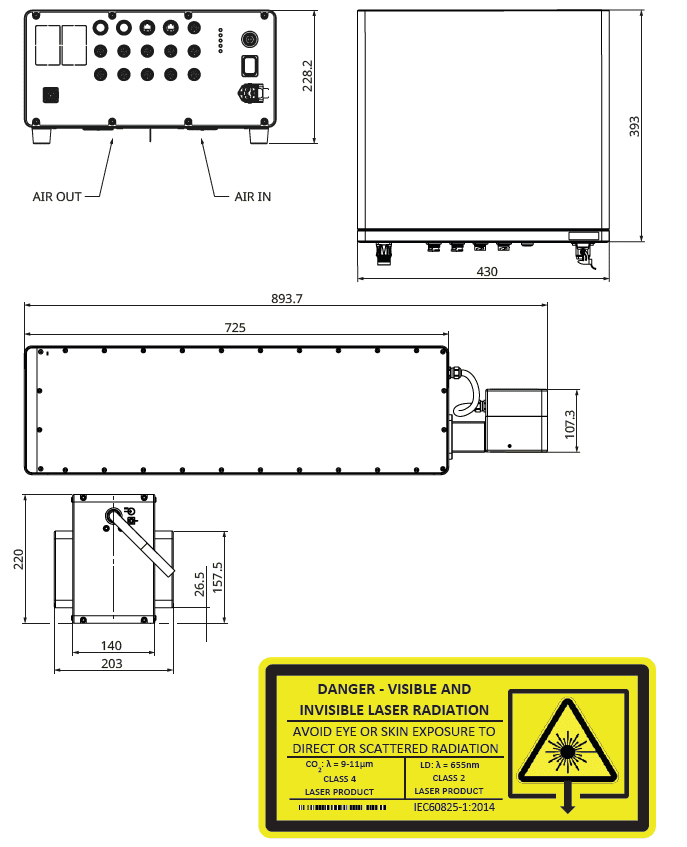

dx1060i-technical-drawings
