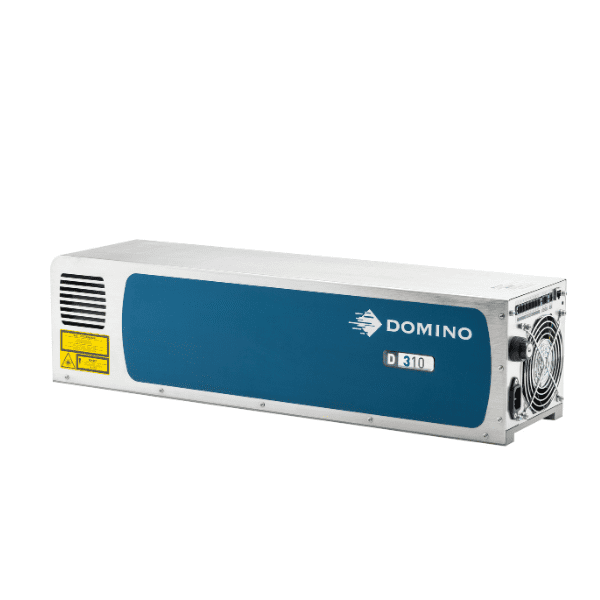

Domino D310 Industrial CO₂ Laser Printer
Domino D310: Ultra-Compact Laser Printer for Sharp Coding Across Many Materials
The Domino D310 laser printer is the smallest and lightest CO₂ vector laser in its class, created for high-speed marking on aluminium, paper, cardboard, glass, PET, and multiple plastics.
The Domino D310 is perfect for laser marking graphics, barcodes, and 2D codes, such as QR Codes and DataMatrix. It can mark an unlimited number of lines in any direction, supporting multilingual characters including Unicode.
The Domino D310 fulfils both current and future needs for high-readability code marking and adheres to traceability laws.
Flexible installation: The Domino D310 scan head rotates from 0° to 90°. Its IP55 rating makes the Domino D310 laser printer especially suited for challenging environments (standard on the D310e model).
Why Choose the Domino D310 Laser Printer?
Quick Installation: Fast setup on existing lines, featuring full-length mounting guides.
Environmentally Friendly: The Domino D310 laser printer works without fluids or consumables, with a redesigned cooling system for lower energy use.

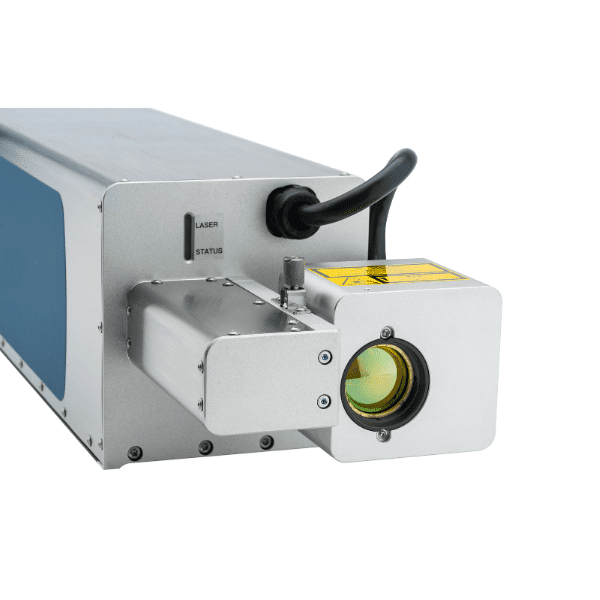

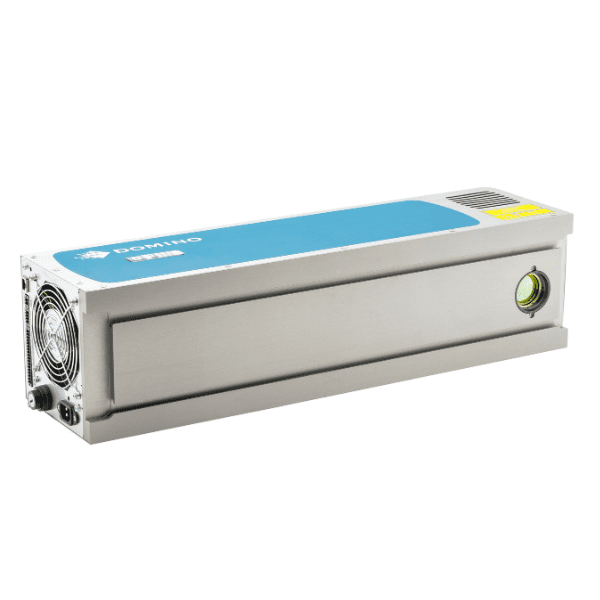

Compact and Powerful: Combines laser head and controller within the scan unit. Its flush lens design fits ultra-tight spaces.
Technical Information
| D310 | D310e | |
|---|---|---|
| Characters per Second * | 1.000 | 1.000 |
| Line Speed * | 350 m/min | 350 m/min |
| Number of Text Lines * | Unlimited | Unlimited |
| Fonts | Multilingual, including Unicode | Multilingual, including Unicode |
| Marking Field (mm) | 58×58 – 68×68 – 84×84 – 102×102 – 136×136 – 180×180 | 58×58 – 68×68 – 84×84 – 102×102 – 136×136 – 180×180 |
| Laser Tube Type | Black – Red – Blue | Black – Red – Blue |
| Laser Power | 30 W – 25 W – 20 W | 30 W – 25 W – 20 W |
| Laser Wavelength | 10.6 μm – 10.2 μm – 9.3 μm | 10.6 μm – 10.2 μm – 9.3 μm |
| F-theta Lens Options (mm) | Focal Length = 80 – 100 – 120 – 150 – 200 – 250 | Focal Length = 80 – 100 – 120 – 150 – 200 – 250 |
| Laser Class | Class 4 | Class 4 |
| Integrated Aiming Beam | No | Yes** |
| Axial Option | No | Yes** |
| Laser Housing | Stainless Steel and Anodized Aluminum | Stainless Steel and Anodized Aluminum |
| Weight & Dimensions | 21kg – 170x170x650 mm | 25kg – 200x180x800 mm |
| Electrical Specifications | 100-230V 50-60Hz (tested at 85-265VAC 47-63Hz) | 100-230V 50-60Hz (tested at 85-265VAC 47-63Hz) |
| Max Power Consumption | 1000VA | 1000VA |
| Laser System | Standard (fan cooled) | IP55 (compressed air cooling) |
| Operating Temperature | 5-45°C | 5-45°C |
| Relative Humidity | Max. 90% RH, non-condensing | Max. 90% RH, non-condensing |
| Optional | Emergency Stop, Beacon, Laser Stand, Fume Extractor, Safety Guards | Emergency Stop, Beacon, Laser Stand, Fume Extractor, Safety Guards |
| Product Detection Inputs | Sensor NPN / PNP / 24V | Sensor NPN / PNP / 24V |
| Product Speed Detection | Differential Encoder / NPN / PNP | Differential Encoder / NPN / PNP |
| Input Signals | Laser Start / Mark Control / Mark On / Programmable Input / User Input | Laser Start / Mark Control / Mark On / Programmable Input / User Input |
| Output Signals | Laser Ready/Busy; Fume Extractor Control; User Output; Beacon | Laser Ready/Busy; Fume Extractor Control; User Output; Beacon |
| Interface | Ethernet – 1 x RJ45 | Ethernet – 1 x RJ45 |
| Optional User Interface | ControlPanel touch screen 10\” (IP65) – Windows 10 PC/HM | ControlPanel touch screen 10\” (IP65) – Windows 10 PC/HM |
| User Interface Language | English, Italian (Operator Selectable) | English, Italian (Operator Selectable) |
| Operating System | Laser: Linux | User Interface Windows 10 | Laser: Linux | User Interface Windows 10 |
| User Interface Software | LM Editor QS Quick Step | LM Editor QS Quick Step |
* Characters per second and line speed vary by material and content.
** Aiming beam unavailable with 80 mm and 100 mm lenses.
Maximum Flexibility in Minimal Spaces
The new D-Series laser markers deliver 360-degree adaptability. Their compact, fully adjustable i-Tech scan head enables installation even in extremely tight areas.
An optional IP65 version adds superior protection for harsh production settings. Combined with high connectivity versatility and a user-friendly interface, the D-Series units can be operated remotely from any workstation.
Wide Application Range
The D-Series laser markers engrave unlimited text lines in any direction, with a large choice of fonts and sizes.
Ideal for graphic marking, barcodes, and 2D codes, including DataMatrix and QR Codes.
All markings are permanent, effective on many material types, and suit high-speed production lines.
Superior Flexibility for Seamless Integration
Being highly adaptable is critical, so the D-Series lasers are engineered to be compact.
Their modular structure offers simple installation and effortless integration into production setups.
- Quick installation: Integrated mounting rails and compact build ensure secure, easy fitting.
- Maximum versatility: The i-Tech scan head connects via a multi-position mount, rotating 90° per step for multiple setup configurations.
- Space-saving design: Its small footprint allows placement where other lasers cannot fit.
Improved Productivity, Less Downtime
The D-Series units are controllable through:

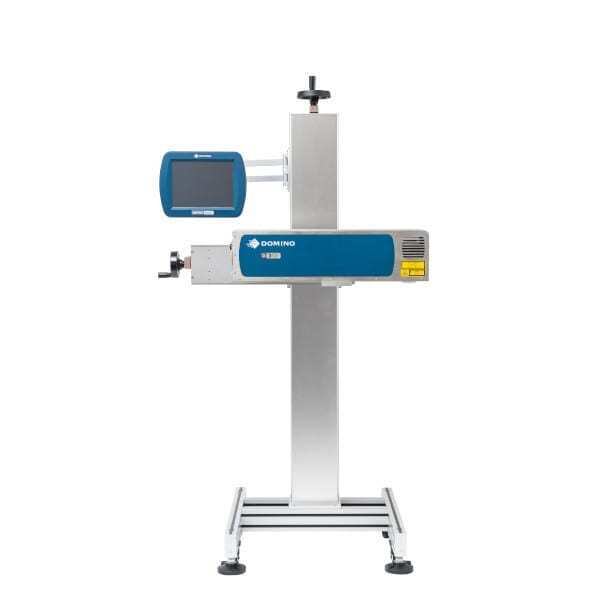

- Intuitive Touch Panel
- Web interface on any industrial PC
- Direct production line integration for ultimate setup flexibility
Ease of Use
Once logged in, setup is fast, and marking message edits update instantly.
Production data is uploaded or downloaded directly via the panel using USB or Ethernet.
Built for Durability
An optional IP65 version offers extra protection for demanding industrial conditions. Its aluminium and stainless-steel frame delivers long-term reliability.
Exceptional Speed & Performance
The i-Tech RapidScan system increases marking speed by 20%, making the D-Series ideal for high-speed lines.
Optimised for intricate codes, achieving enhanced results on difficult materials.
Pharma Option: Ensures detailed change logs and secure, password-protected access, meeting 21-CFR Part 11 and GAMP standards.
A validation package can be included for strict compliance requirements.
Codentify® ready: Supports 12-digit unique codes for authentication and fiscal applications.
Fume Extraction Solutions: Effective particle and fume removal is vital for safety and cleanliness.

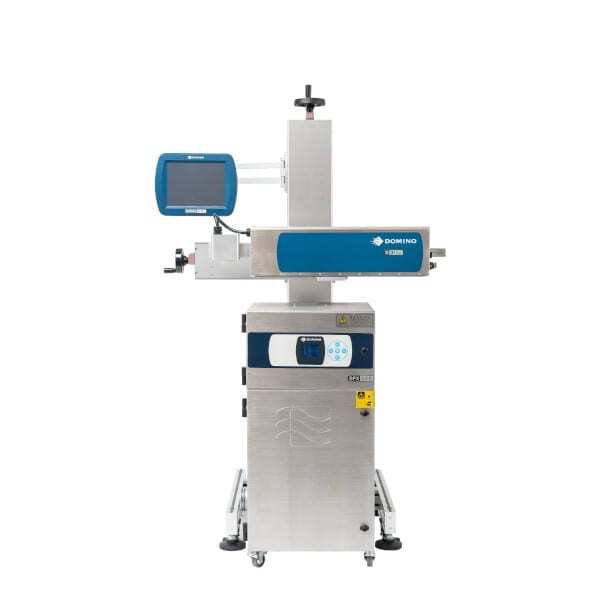

The Domino DPX extraction unit works seamlessly with D-Series lasers, ensuring a complete and efficient solution.
