Domino Cx350i Large Character Inkjet Printer
Ideal Solution for Industry 4.0 Secondary Packaging Coding
The Domino Cx350i is an intelligent large character inkjet printer designed to unlock the benefits of direct coding onto secondary packs.

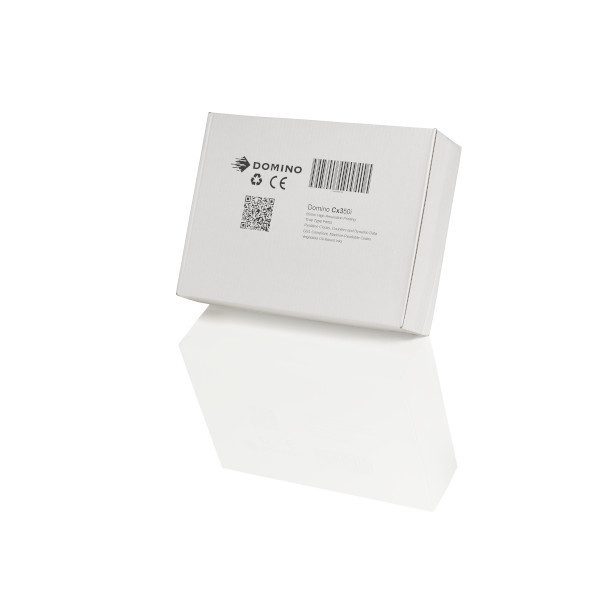

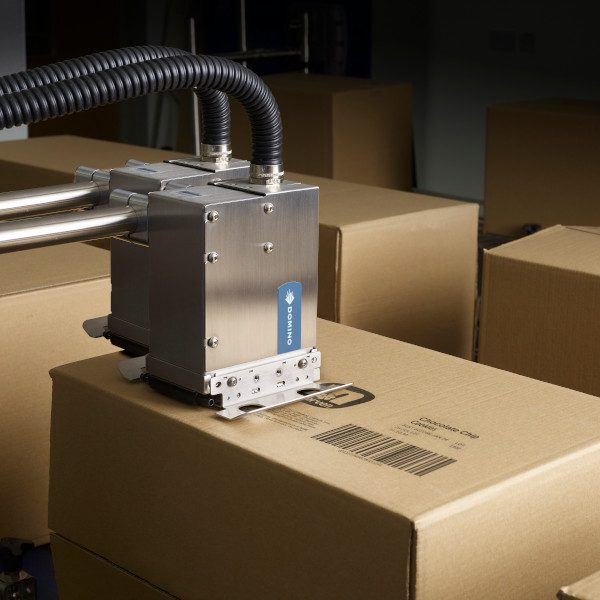

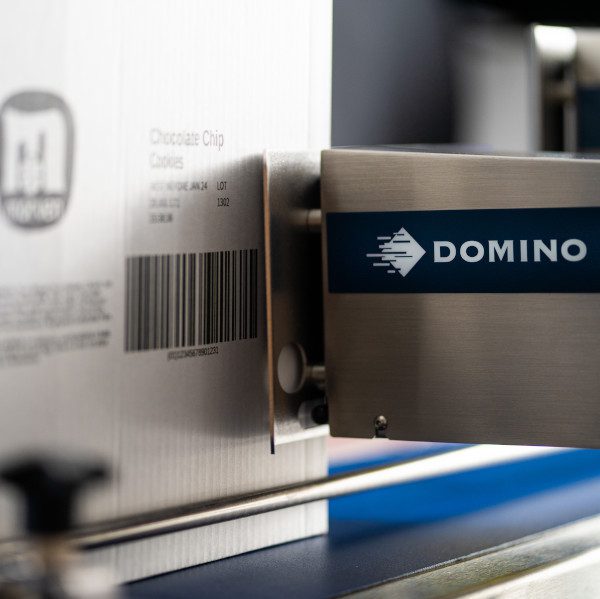

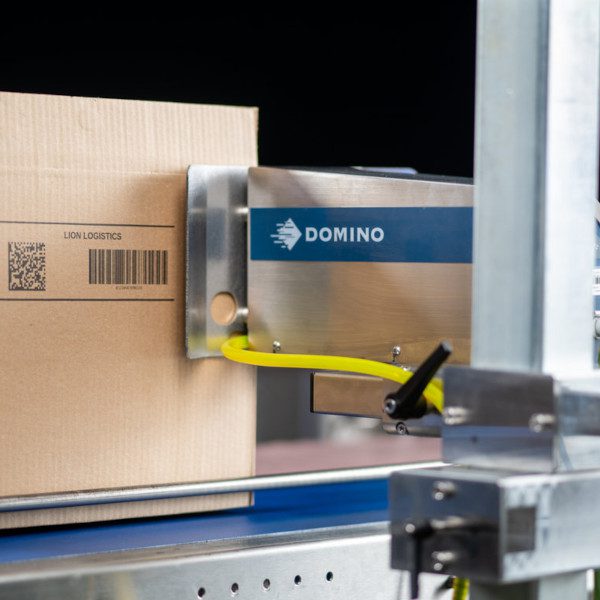

Using the Domino Cx350i inkjet printer, companies can achieve premium code quality while lowering operational costs. It removes the need for pre-printed cases or labels by printing graphics, barcodes, and texts straight onto cartons.
Opting for the Domino Cx350i is an environmentally conscious green choice, as it employs eco-friendly inks made from plant-derived oils and features adjustable resolution to ensure sharp prints with reduced ink usage.
Its integrated coding automation software enhances productivity and works flawlessly with barcode scanners and vision inspection systems to guarantee optimal readability of every code.
Why Opt for the Domino Cx350i Large Character Inkjet Printer?
The broad set of connectivity options allows seamless integration with existing technologies via standard PLC connections, including Ethernet/IP™. No compressed air or filter changes are needed.
Simple data transfer tools make integration with various packaging and process lines straightforward. The large ink reservoir ensures extended operation and reduces manual refills.
The Domino Cx350i large character inkjet printer runs without compressed air, eliminates label waste, and exclusively uses plant-based oil inks for clear, high-contrast prints. Ink can be refilled while in operation.
Variants

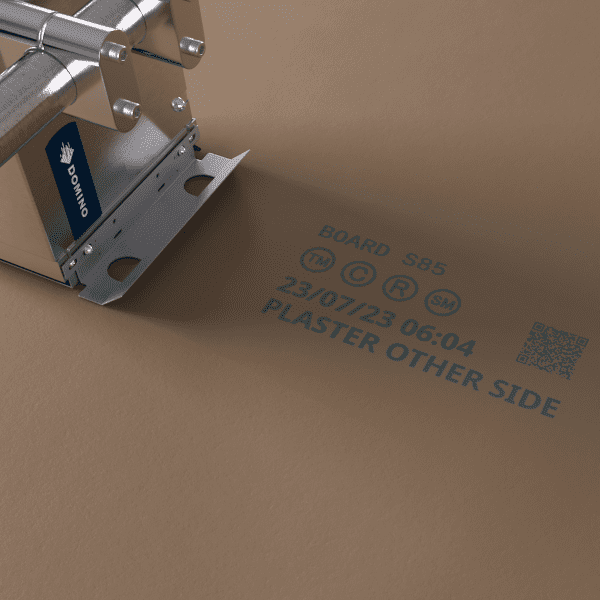

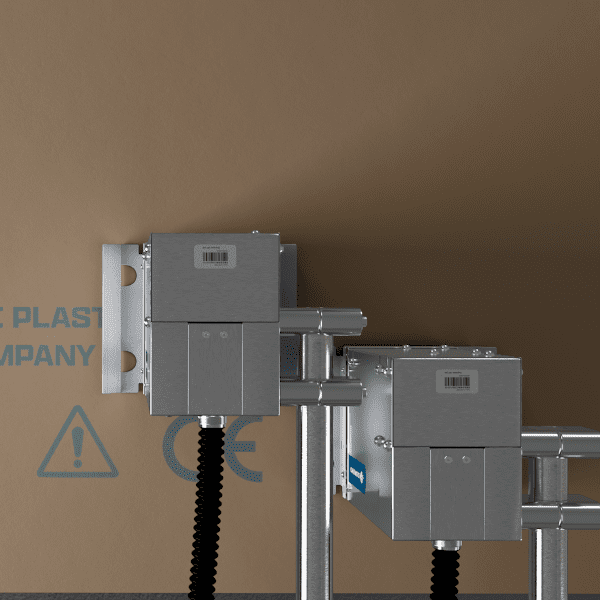

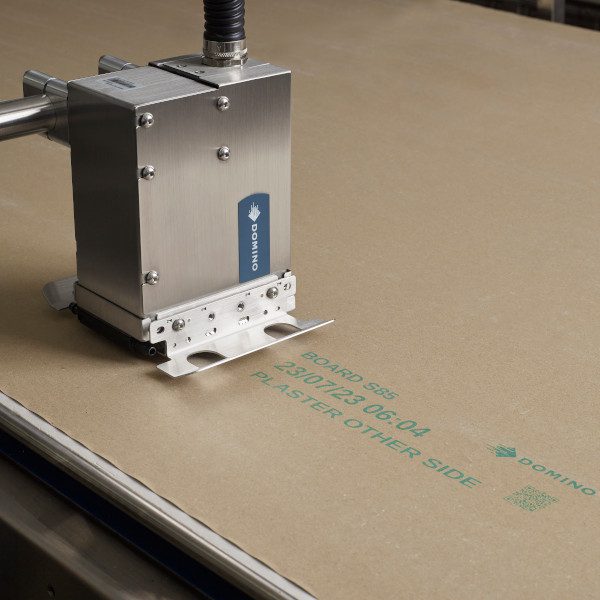

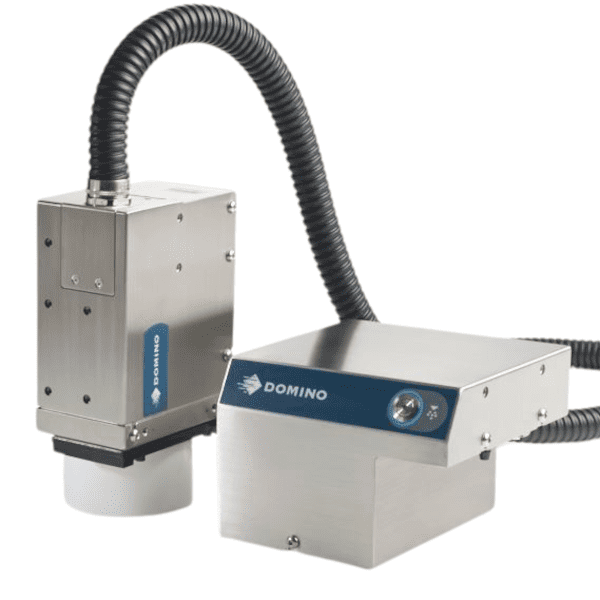

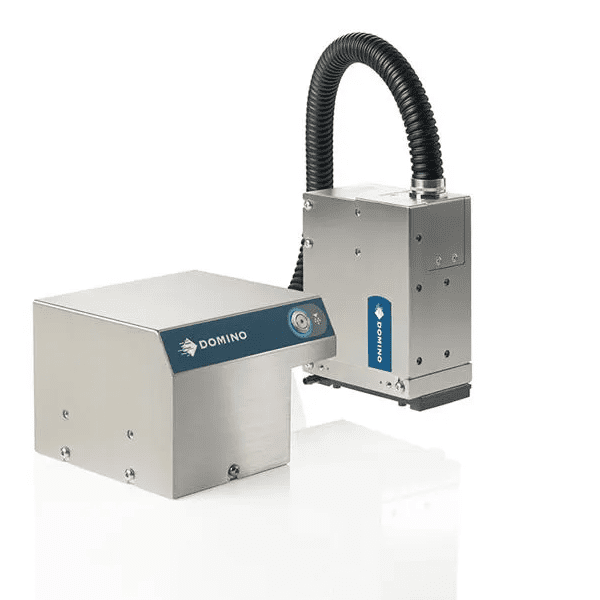

The Domino Cx350i large character inkjet printer is offered with Horizontal and Vertical printhead options to expand coding coverage for secondary packaging. Its compact size ensures smooth integration on any line, making it perfect for industrial coding, including plasterboard marking.
Technical Information

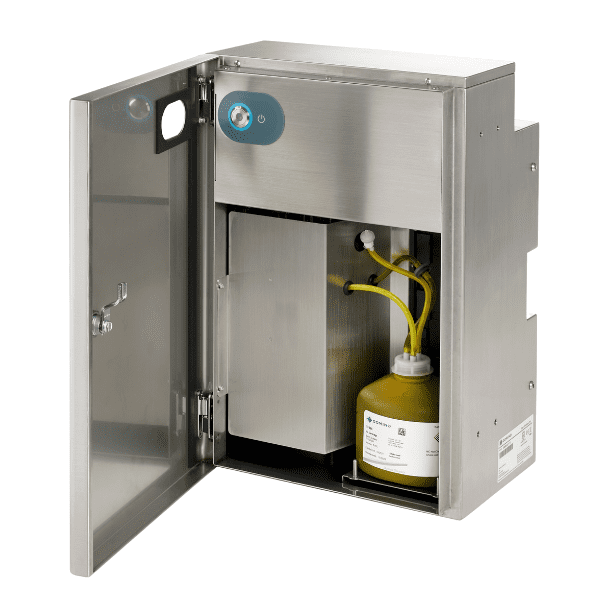

Cabinet
| Cx-Base 2 Heads | Cx-Base 4 Heads | |
|---|---|---|
| Printheads (max.) 2 Internal Reservoir: 440 ml | Printheads (max.) 4 Internal Reservoir: 760 ml | |
| Dimensions | Length: 329.7 mm / Depth: 233.7 mm / Height: 489.5 mm Cx-2 Heads Base: 13.55 kg, Cx-4 Heads Base: 15.03 kg (excluding power button, stop, connector cover, bracket) | Length: 329.7 mm / Depth: 233.7 mm / Height: 489.5 mm Cx-2 Heads Base: 13.55 kg, Cx-4 Heads Base: 15.03 kg (excluding power button, stop, connector cover, bracket) |
| Electrical Requirements | Input: 100-240VAC, 50-60 Hz, Heads: 2A | Input: 100-240VAC, 50-60 Hz, Heads: 3A |
| Connection Options | 1 x encoder input, 1 x I/O connector (4 x product presence sensor input, 5 x general-purpose input, 8 x general-purpose output, 3 x 24VDC output), 2 x USB (type A), 1 x RS232C, 2 x RJ-45 | 2 x encoder input, 2 x I/O connector (4 x product presence sensor input, 9 x general-purpose input, 12 x general-purpose output, 4 x 24VDC output, 3 x alarm contacts), 2 x USB (type A), 1 x RS232C, 2 x RJ-45 |

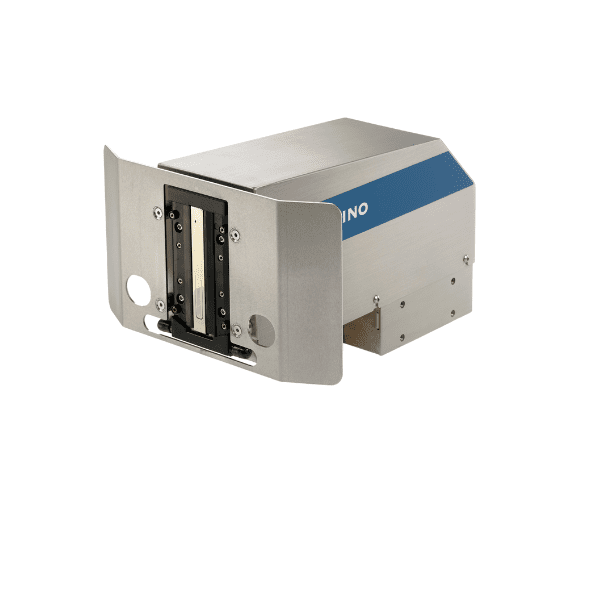

Printhead
| Dimensions | Length: 112.8 mm / Depth: 311.6 mm / Height: 190 mm / Weight: 4.22 kg |
| Electrical Requirements | 24VDC (supplied by the base cabinet) |
| Resolution | Horizontal max. 300 dpi, Vertical 150 dpi |
| Print Height | 65 mm max |

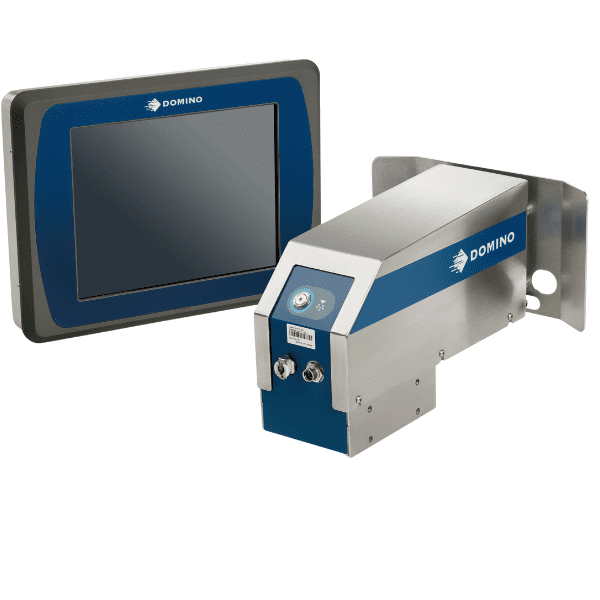

TouchPanel

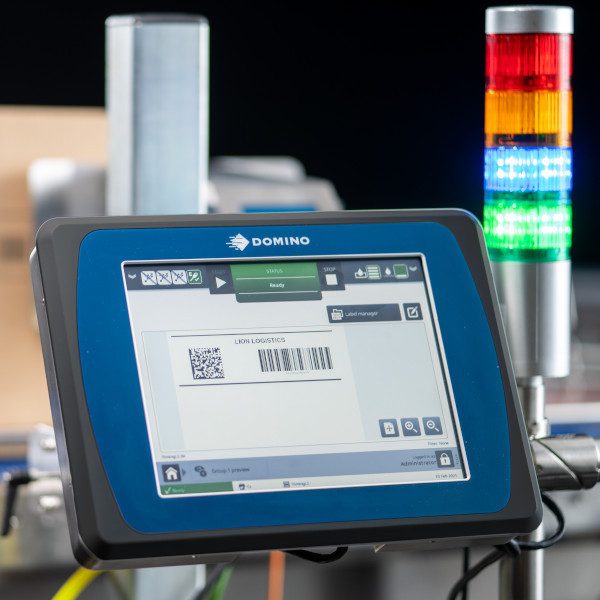

| User Interface | 10.4” TouchPanel with QuickStep 3 software |
| Dimensions | Length: 320 mm / Depth: 45 mm / Height: 235 mm / Weight: 2.65 kg |
System Specifications
| Operating Temperature | 5°-40°C |
| Operating Humidity | 10%-90% RH (non-condensing, 10°C hourly increase) |
| Enclosure | Brushed stainless steel |
| Printhead and Cabinet Protection Rating | IP4X |
| Inks | High-contrast, eco-friendly vegetable oil-based inks available in 1.4 and 0.85-liter bottles |
| Communication | Ethernet / Dynamark protocols, EDC (serial, TCP, USB), optional: Ethernet/IP™ Protocol, Domino coding automation |
| Print Speed max. | 210 m/min. @100dpi; 100 m/min. @200dpi; 70m/min. @300dpi |
