Domino Ax150i Continuous Inkjet Printer
The Domino Ax150i Continuous Inkjet Printer delivers global solutions for fast coding, user-friendly operation, and accurate drop control

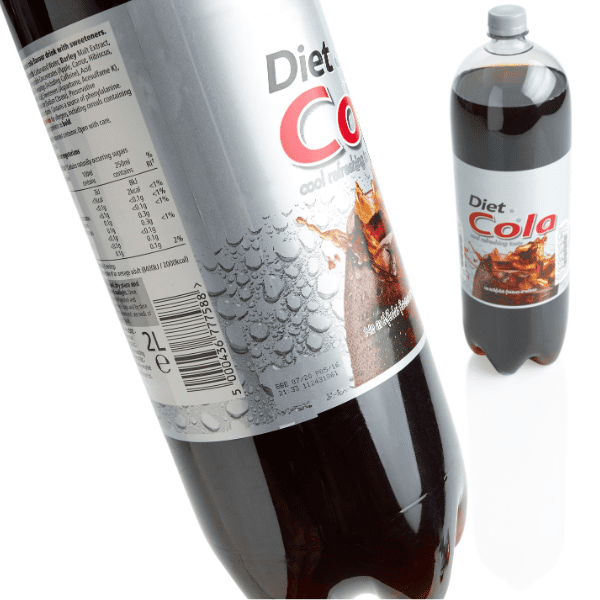

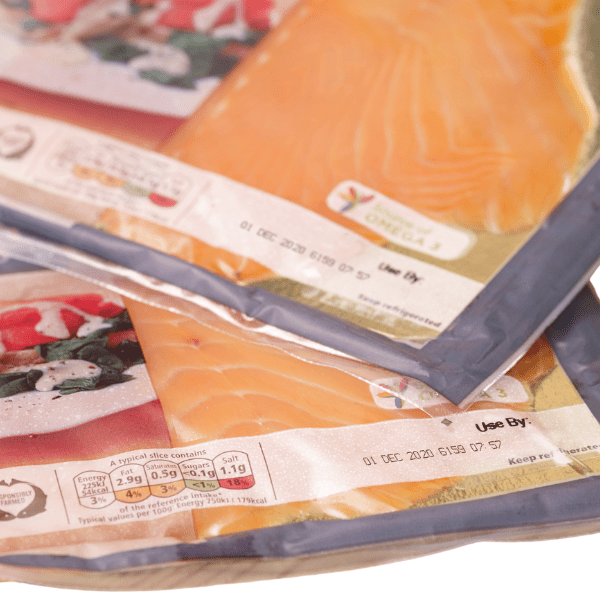

The Domino Ax150i continuous inkjet printer ensures reliable and accurate marking for batch codes, expiration dates, and many other identifiers essential for complete product traceability.
In addition, it can be configured to suit an extensive variety of production requirements.
The intuitive user interface paired with Dominoâs QuickStep software is easy to operate and reduces the chance of human error. The Ax150i can be supplied with multiple optional packages, which can be added even after installation, ensuring performance that meets evolving production demands.

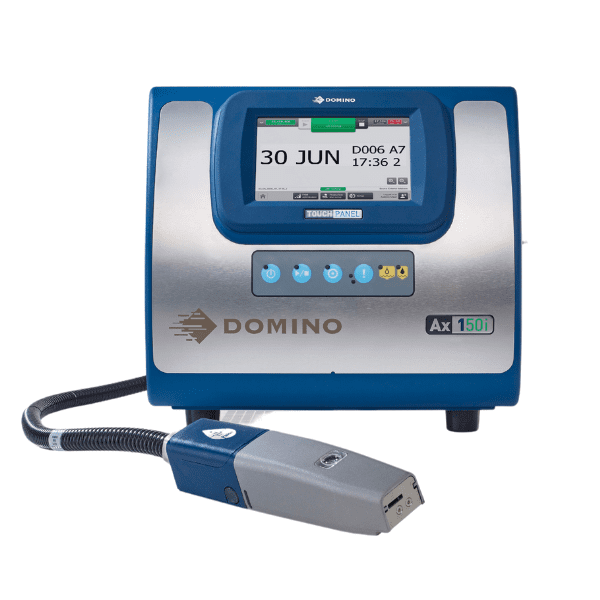

The control screen is built for clarity and efficiency, allowing operators to update coding parameters according to production needs with just a few actions.
The Ax150i stands out as an ideal solution for both new enterprises and established manufacturers seeking to expand capacity.
Why choose the Domino Ax150i continuous inkjet printer
Perfect balance between ink and printhead. Delivers crisp 9-drop characters at the throughput speed of a 7-drop print.

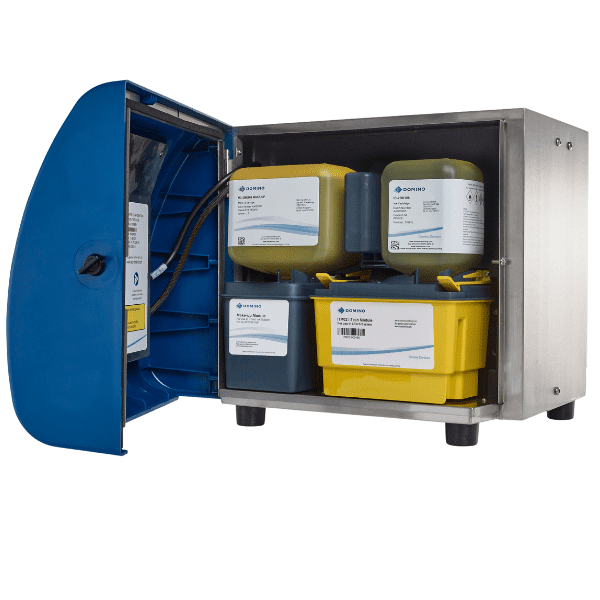

The Domino Ax150iâs cartridge technology allows extended production runs and guarantees ink changes that are quick and spill-free.

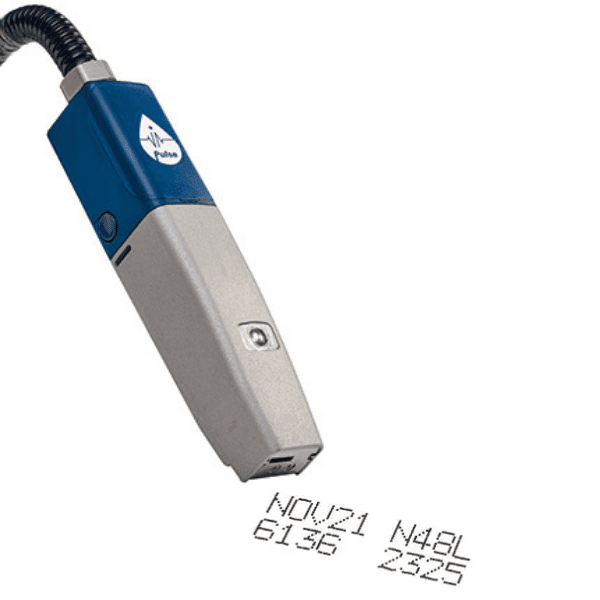

The advanced i-Pulse printhead of the Ax Series controls each droplet with precision, ensuring high speed and accuracy. This guarantees accurate placement, lower ink consumption, and reduced environmental footprint.
Technical Info
Domino printers are certified and distributed in more than 100 countries globally. Certifications: CE, NRTL, CB, and FCC 47CFR Part 15B.

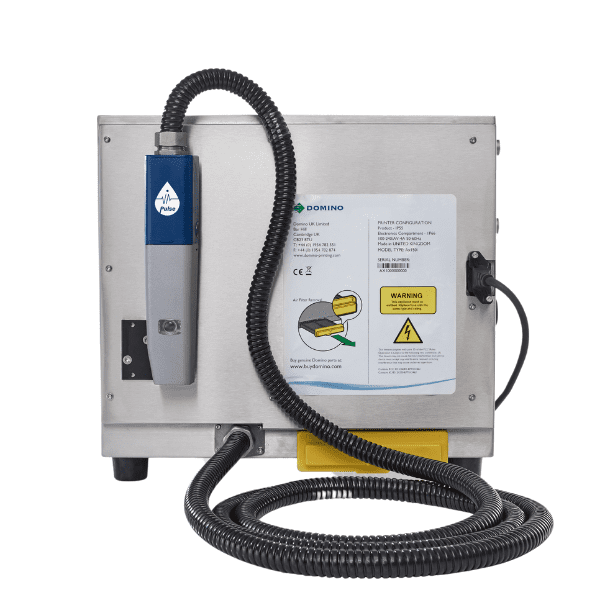

Printhead
| Type | i-Pulse |
| Nozzle sealing technology | â |
| Nozzle size | 60 Âľm |
| Maximum resolution (dpi) | 82 |
| Format | Straight |
| Conduit length | 3 m |
| Minimum conduit bend radius | 65 mm |
Cabinet
| Material | Stainless steel 304 (5 sides), Nylon (door) |

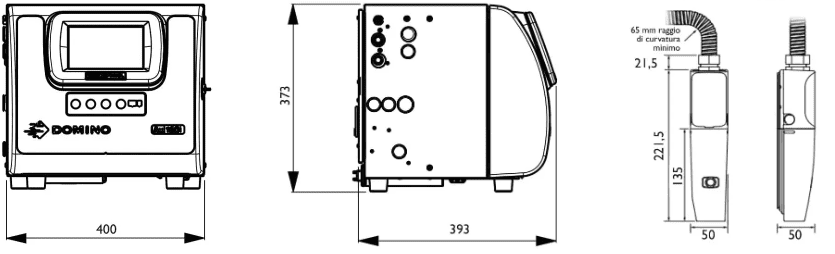

| Dimensions (WxHxD) | 400 x 373 x 393 (mm) |
| Dry weight | 16 kg |
| Power supply | 100-240 v : 4 A 50-60 Hz |
| Power consumption | 40 W (idle); 80 W (printing) |

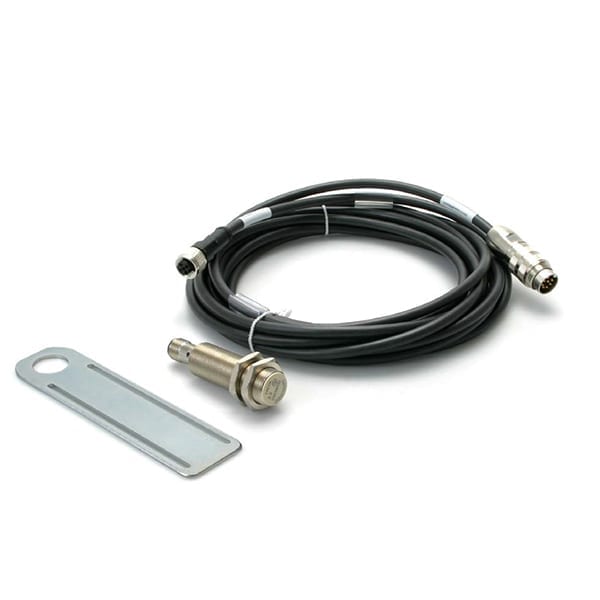

| Product detection input (x1) | â |
| Encoder input (x1) | â |
| RFID | 13,56 MHz 1,3 uW ERP |
Inks
| Ink cartridge capacity | 825 ml |
| Make-up cartridge capacity | 1.200 ml |
Connectivity
| Domino Protocols | Codenet, Intercomm 0 |
| PC software package | QuickDesign V5 & V6 compatible |
| Webserver | â |
| Domino Cloud compatible* | â |
*Requires optional Communication Package
Operation
| User interface | 7ââ color touchscreen (optional) |
| Software | QuickStep 3 |
| Operator-friendly | â |
| One-button start and stop | â |
Consumables
| Automatic cartridge recognition | â |
| Intelligent level monitoring | â |
| Make-up cartridge lifespan** | 171 hours |
| Cartridge replacement | 20 seconds â no line stoppage |
Maintenance
| Maintenance type | Maintenance-free â ITM system |
| ITM replacement frequency° | 12 months |
| ITM replacement | Under 10 minutes of downtime |
Environment
| Operating temperature° | 5-45°C |
| Humidity | 0-90% RH |
| Protection rating (cabinet) | IP55 |
| Options for harsh environments | IP65 Printhead Cover (washdown), positive air pressure on printhead (dusty areas) |
* Values depend on Raster Extension Package.
** Based on MEK ink at 21°C.
^ Drop size may vary by substrate.
° Depending on ink type.
Speed (m/s)*
| 1 Line â 5-drop | Std DPI 5,1 â Max DPI 3,8 |
| 2 Lines â 7-drop | Std DPI 1,3 â Max DPI 0,9 |
| 2 Lines â 9-drop | Std DPI 1,0 â Max DPI 0,7 |
| 1 Line â 24-drop | Std DPI 0,5 â Max DPI 0,4 |
Dimensions
| Maximum number of lines | 5 |
| Print height (drops)* | Up to 32 |
| Print height (mm)* | Up to 20 mm |
| Deposited drop size^ | 0,31 mm |
Code Format
| Text | Full Unicode support |
| Graphic Import* | .bmp Integrated Logo Editor |
| 1D Barcodes | EAN 8, EAN 13, UPC A, UPC E, Code 39, Code 93, Code 128, ITF-14, GS1-128 |
| 2D Barcodes | Datamatrix, QR Code, Dot Code, Han Xin, Postnet |
* Declared with Raster Extension Package
Hardware Packages

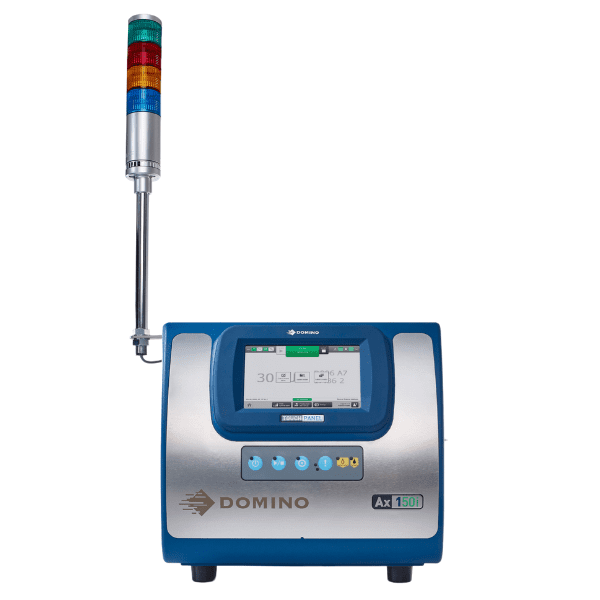

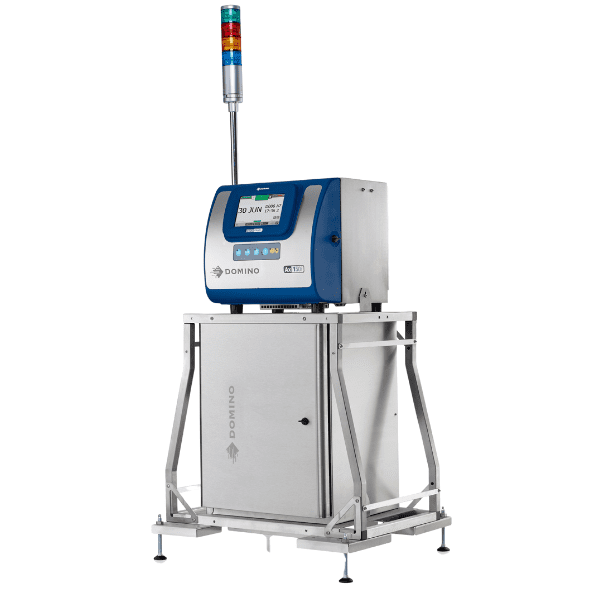

Printer Status Package

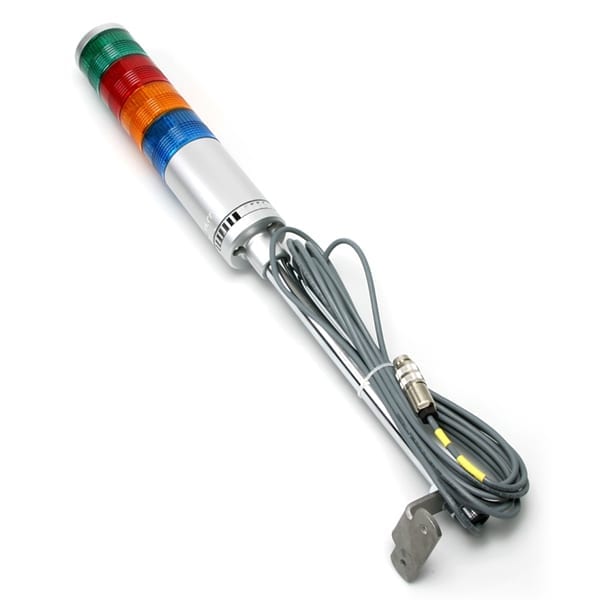

4-color tower light, clean contact output (x1)
Communication Package
USB port (x1), Ethernet RJ45 port (x1)
RS232 Package
RS232 communication port
GPIO Package
4 inputs / 4 outputs (x1)
Performance Package
Raster Extension Package for HQ raster printing

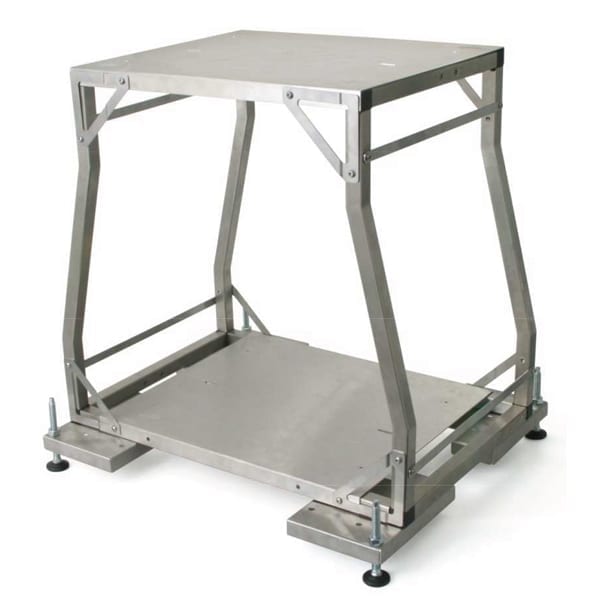

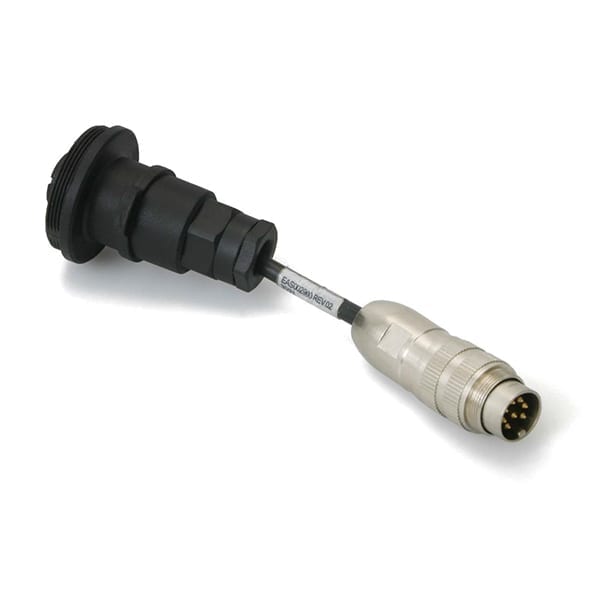

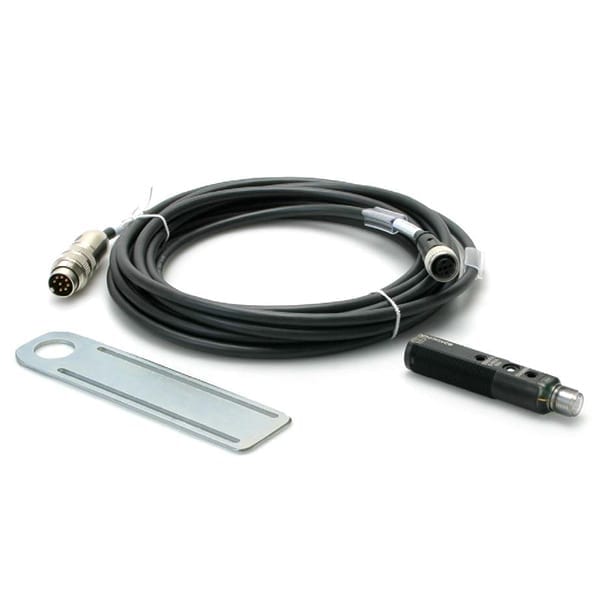

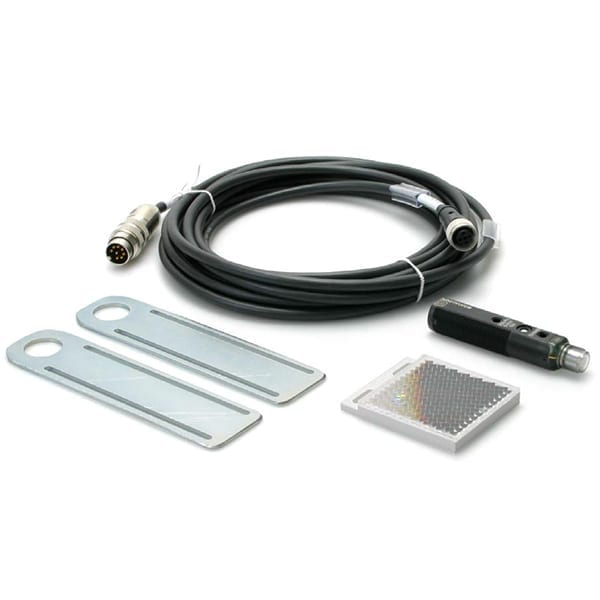

Accessories
Enhance the performance of your Domino Ax150i inkjet printer with tailored accessories for your production line.
