Brother TJ-4522TN Label Printer


Industrial high-speed printer with built-in rewinder

The Brother TJ-4522TN is a durable label printer engineered for intensive industrial printing. Capable of reaching 305 mm/sec and working with 600 m thermal ribbons, it supports long, uninterrupted runs. Its integrated rewinder and intuitive color touchscreen simplify daily operations. With USB, Ethernet, RS-232, and optional Wi-Fi/Bluetooth connectivity, it supports several printer languages including ZPL II, EPL2, and DPL. Suitable for cartons, pallets, plastics, cardboard, metals, and glass, and designed for both 1D and 2D barcode applications.

Why choose Brother TJ-4522TN

Touchscreen icon

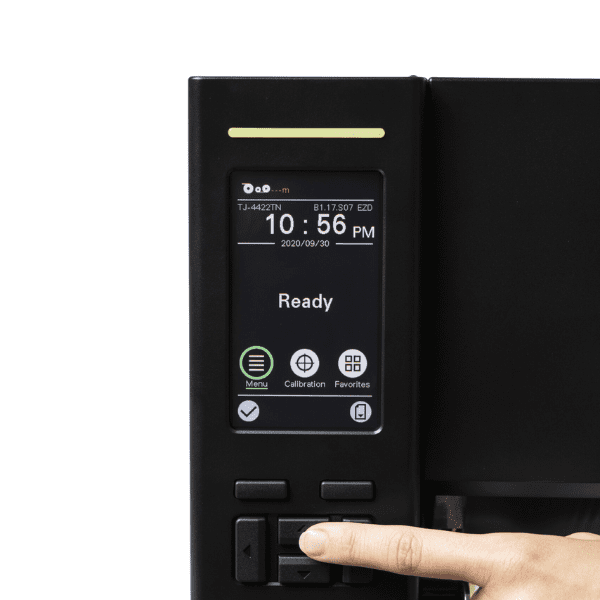

Color touchscreen
User-friendly display designed to streamline control in demanding production setups.

High-speed printing icon
High-speed output
Delivers 305 mm/sec – ideal for large-scale production and thousands of daily labels.

Connectivity icon
Flexible connectivity
USB, serial, Ethernet, plus optional Wi-Fi/Bluetooth; supports ZPL II, EPL2, DPL.

Technical specifications

Max label width 114 mm
Ribbon length 600 m
Max print width 104 mm
Max print length 11,430 mm
Print speed 305 mm/sec (12 ips)
Resolution 300 dpi
Technology Thermal transfer / Direct thermal
Barcode support 1D: Code128, EAN, ITF14, Code39, etc.
2D: QR Code, PDF417, GS1 DataMatrix, AZTEC, etc.
Media compatibility Pallets, boxes, cardboard, glass, plastic, metal
Software Bartender Ultra Lite Edition
Dimensions (W x H x D) 276 × 412 × 502 mm
Weight 18.9 kg
